Implementing Attention Mechanism for Caption Generation Using TensorFlow on Transformers

• Understand the state-of-the-art transformer models.
• Learn how we implement transformers for the image captioning problem we have seen using TensorFlow.
• Compare the results of transformers with attention models.

• Python programming
• TensorFlow and Keras
• RNN and LSTM
• Transfer learning
• Encoder-decoder architecture
• Key points of deep learning – attention in sequence-to-sequence modeling

https://www.analyticsvidhya.com/blog/2020/11/attention-mechanism-for-caption-generation/

import string
import numpy as np
import pandas as pd
from numpy import array
from PIL import Image
import pickle

import matplotlib.pyplot as plt
import sys, time, os, warnings
warnings.filterwarnings("ignore")
import re

import keras
import tensorflow as tf
from tqdm import tqdm
from nltk.translate.bleu_score import sentence_bleu

from keras.preprocessing.sequence import pad_sequences
from keras.utils import to_categorical
from keras.utils import plot_model
from keras.models import Model
from keras.layers import Input
from keras.layers import Dense, BatchNormalization
from keras.layers import LSTM
from keras.layers import Embedding
from keras.layers import Dropout
from keras.layers.merge import add
from keras.callbacks import ModelCheckpoint
from keras.preprocessing.image import load_img, img_to_array
from keras.preprocessing.text import Tokenizer

from sklearn.utils import shuffle
from sklearn.model_selection import train_test_split

image_path = "/content/gdrive/My Drive/FLICKR8K/Flicker8k_Dataset"
dir_Flickr_text = "/content/gdrive/My Drive/FLICKR8K/Flickr8k_text/Flickr8k.token.txt"
jpgs = os.listdir(image_path)

print("Total Images in Dataset = {}".format(len(jpgs)))

file = open(dir_Flickr_text,'r')
text = file.read()
file.close()

datatxt = []
for line in text.split('\n'):
   col = line.split('\t')
   if len(col) == 1:
       continue
   w = col[0].split("#")
   datatxt.append(w + [col[1].lower()])

data = pd.DataFrame(datatxt,columns=["filename","index","caption"])
data = data.reindex(columns =['index','filename','caption'])
data = data[data.filename != '2258277193_586949ec62.jpg.1']
uni_filenames = np.unique(data.filename.values)

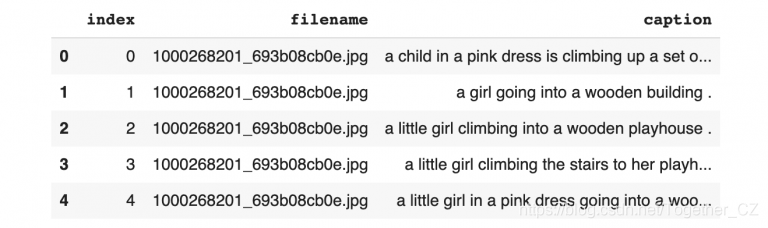

data.head()

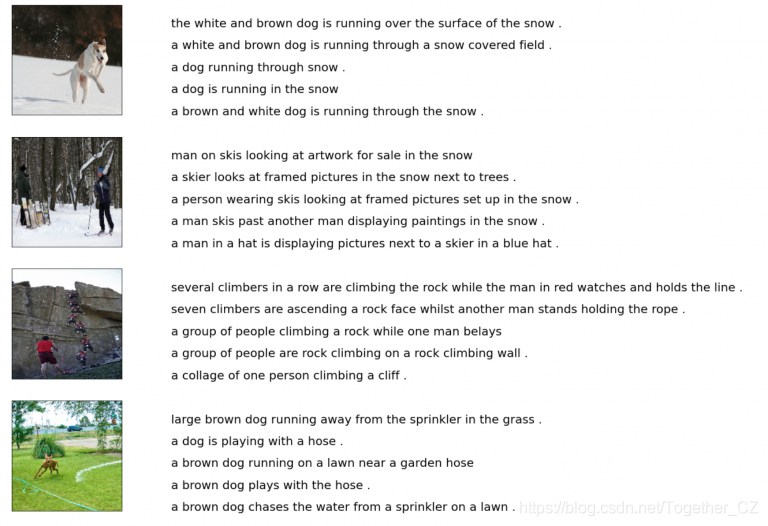

npic = 5
npix = 224
target_size = (npix,npix,3)
count = 1

fig = plt.figure(figsize=(10,20))
for jpgfnm in uni_filenames[10:14]:
   filename = image_path + '/' + jpgfnm
   captions = list(data["caption"].loc[data["filename"]==jpgfnm].values)
   image_load = load_img(filename, target_size=target_size)
   ax = fig.add_subplot(npic,2,count,xticks=[],yticks=[])
   ax.imshow(image_load)
   count += 1

   ax = fig.add_subplot(npic,2,count)
   plt.axis('off')
   ax.plot()
   ax.set_xlim(0,1)
   ax.set_ylim(0,len(captions))
   for i, caption in enumerate(captions):
       ax.text(0,i,caption,fontsize=20)
   count += 1
plt.show()

vocabulary = []
for txt in data.caption.values:
   vocabulary.extend(txt.split())
print('Vocabulary Size: %d' % len(set(vocabulary)))

def remove_punctuation(text_original):
   text_no_punctuation = text_original.translate(string.punctuation)
   return(text_no_punctuation)


def remove_single_character(text):
   text_len_more_than1 = ""
   for word in text.split():
       if len(word) > 1:
           text_len_more_than1 += " " + word
   return(text_len_more_than1)


def remove_numeric(text):
   text_no_numeric = ""
   for word in text.split():
       isalpha = word.isalpha()
       if isalpha:
           text_no_numeric += " " + word
   return(text_no_numeric)


def text_clean(text_original):
   text = remove_punctuation(text_original)
   text = remove_single_character(text)
   text = remove_numeric(text)
   return(text)

for i, caption in enumerate(data.caption.values):
   newcaption = text_clean(caption)
   data["caption"].iloc[i] = newcaption

clean_vocabulary = []
for txt in data.caption.values:
   clean_vocabulary.extend(txt.split())
print('Clean Vocabulary Size: %d' % len(set(clean_vocabulary)))

PATH = "/content/gdrive/My Drive/FLICKR8K/Flicker8k_Dataset/"
all_captions = []
for caption  in data["caption"].astype(str):
   caption = '<start> ' + caption+ ' <end>'
   all_captions.append(caption)

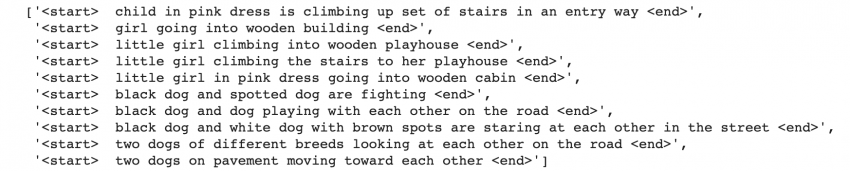

all_captions[:10]

all_img_name_vector = []
for annot in data["filename"]:
   full_image_path = PATH + annot
   all_img_name_vector.append(full_image_path)

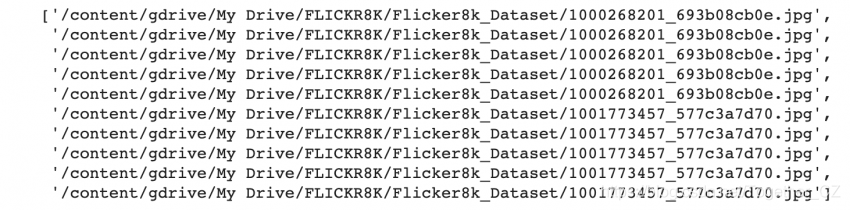

all_img_name_vector[:10]

print(f"len(all_img_name_vector) : {len(all_img_name_vector)}")
print(f"len(all_captions) : {len(all_captions)}")

def data_limiter(num,total_captions,all_img_name_vector):
   train_captions, img_name_vector = shuffle(total_captions,all_img_name_vector,random_state=1)
   train_captions = train_captions[:num]
   img_name_vector = img_name_vector[:num]
   return train_captions,img_name_vector

train_captions,img_name_vector = data_limiter(40000,total_captions,all_img_name_vector)

def load_image(image_path):
   img = tf.io.read_file(image_path)
   img = tf.image.decode_jpeg(img, channels=3)
   img = tf.image.resize(img, (299, 299))
   img = tf.keras.applications.inception_v3.preprocess_input(img)
   return img, image_path

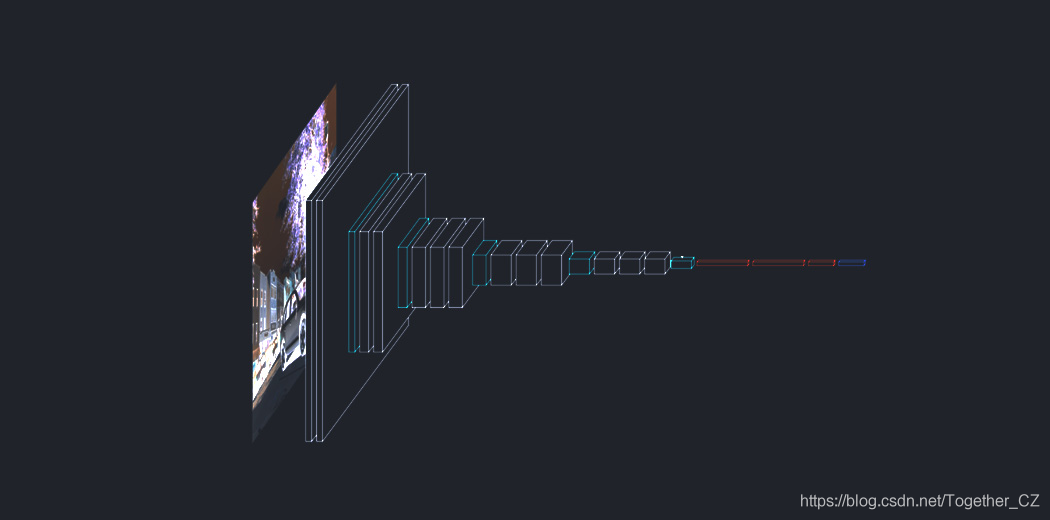

image_model = tf.keras.applications.InceptionV3(include_top=False, weights='imagenet')
new_input = image_model.input
hidden_layer = image_model.layers[-1].output
image_features_extract_model = tf.keras.Model(new_input, hidden_layer)

encode_train = sorted(set(img_name_vector))
image_dataset = tf.data.Dataset.from_tensor_slices(encode_train)
image_dataset = image_dataset.map(load_image, num_parallel_calls=tf.data.experimental.AUTOTUNE).batch(64)

for img, path in tqdm(image_dataset):
   batch_features = image_features_extract_model(img)
   batch_features = tf.reshape(batch_features,
                              (batch_features.shape[0], -1, batch_features.shape[3]))

 for bf, p in zip(batch_features, path):
   path_of_feature = p.numpy().decode("utf-8")
   np.save(path_of_feature, bf.numpy())

top_k = 5000
tokenizer = tf.keras.preprocessing.text.Tokenizer(num_words=top_k,
                                                 oov_token="<unk>",
                                                 filters='!"#$%&()*+.,-/:;=?@[\]^_`{|}~ ')

tokenizer.fit_on_texts(train_captions)
train_seqs = tokenizer.texts_to_sequences(train_captions)
tokenizer.word_index['<pad>'] = 0
tokenizer.index_word[0] = '<pad>'

train_seqs = tokenizer.texts_to_sequences(train_captions)
cap_vector = tf.keras.preprocessing.sequence.pad_sequences(train_seqs, padding='post')

img_name_train, img_name_val, cap_train, cap_val = train_test_split(img_name_vector,cap_vector, test_size=0.2, random_state=0)

BATCH_SIZE = 64
BUFFER_SIZE = 1000
num_steps = len(img_name_train) // BATCH_SIZE

def map_func(img_name, cap):
   img_tensor = np.load(img_name.decode('utf-8')+'.npy')
   return img_tensor, cap

dataset = tf.data.Dataset.from_tensor_slices((img_name_train, cap_train))
dataset = dataset.map(lambda item1, item2: tf.numpy_function(map_func, [item1, item2], [tf.float32, tf.int32]),num_parallel_calls=tf.data.experimental.AUTOTUNE)
dataset = dataset.shuffle(BUFFER_SIZE).batch(BATCH_SIZE)
dataset = dataset.prefetch(buffer_size=tf.data.experimental.AUTOTUNE)

def get_angles(pos, i, d_model):
   angle_rates = 1 / np.power(10000, (2 * (i//2)) / np.float32(d_model))
   return pos * angle_rates

def positional_encoding_1d(position, d_model):
   angle_rads = get_angles(np.arange(position)[:, np.newaxis],
                           np.arange(d_model)[np.newaxis, :],
                           d_model)

   angle_rads[:, 0::2] = np.sin(angle_rads[:, 0::2])
   angle_rads[:, 1::2] = np.cos(angle_rads[:, 1::2])
   pos_encoding = angle_rads[np.newaxis, ...]
   return tf.cast(pos_encoding, dtype=tf.float32)

def positional_encoding_2d(row,col,d_model):
   assert d_model % 2 == 0
   row_pos = np.repeat(np.arange(row),col)[:,np.newaxis]
   col_pos = np.repeat(np.expand_dims(np.arange(col),0),row,axis=0).reshape(-1,1)

   angle_rads_row = get_angles(row_pos,np.arange(d_model//2)[np.newaxis,:],d_model//2)
   angle_rads_col = get_angles(col_pos,np.arange(d_model//2)[np.newaxis,:],d_model//2)

   angle_rads_row[:, 0::2] = np.sin(angle_rads_row[:, 0::2])
   angle_rads_row[:, 1::2] = np.cos(angle_rads_row[:, 1::2])
   angle_rads_col[:, 0::2] = np.sin(angle_rads_col[:, 0::2])
   angle_rads_col[:, 1::2] = np.cos(angle_rads_col[:, 1::2])
   pos_encoding = np.concatenate([angle_rads_row,angle_rads_col],axis=1)[np.newaxis, ...]
   return tf.cast(pos_encoding, dtype=tf.float32)

def create_padding_mask(seq):
   seq = tf.cast(tf.math.equal(seq, 0), tf.float32)
   return seq[:, tf.newaxis, tf.newaxis, :]  # (batch_size, 1, 1, seq_len)

def create_look_ahead_mask(size):
   mask = 1 - tf.linalg.band_part(tf.ones((size, size)), -1, 0)
   return mask  # (seq_len, seq_len)

def scaled_dot_product_attention(q, k, v, mask):
   matmul_qk = tf.matmul(q, k, transpose_b=True)  # (..., seq_len_q, seq_len_k)
   dk = tf.cast(tf.shape(k)[-1], tf.float32)
   scaled_attention_logits = matmul_qk / tf.math.sqrt(dk)
.
   if mask is not None:
      scaled_attention_logits += (mask * -1e9)

   attention_weights = tf.nn.softmax(scaled_attention_logits, axis=-1)
   output = tf.matmul(attention_weights, v)  # (..., seq_len_q, depth_v)

   return output, attention_weights

class MultiHeadAttention(tf.keras.layers.Layer):
   def __init__(self, d_model, num_heads):
      super(MultiHeadAttention, self).__init__()
      self.num_heads = num_heads
      self.d_model = d_model
      assert d_model % self.num_heads == 0
      self.depth = d_model // self.num_heads
      self.wq = tf.keras.layers.Dense(d_model)
      self.wk = tf.keras.layers.Dense(d_model)
      self.wv = tf.keras.layers.Dense(d_model)
      self.dense = tf.keras.layers.Dense(d_model)

   def split_heads(self, x, batch_size):
      x = tf.reshape(x, (batch_size, -1, self.num_heads, self.depth))
      return tf.transpose(x, perm=[0, 2, 1, 3])

   def call(self, v, k, q, mask=None):
      batch_size = tf.shape(q)[0]
      q = self.wq(q)  # (batch_size, seq_len, d_model)
      k = self.wk(k)  # (batch_size, seq_len, d_model)
      v = self.wv(v)  # (batch_size, seq_len, d_model)

      q = self.split_heads(q, batch_size)  # (batch_size, num_heads, seq_len_q, depth)
      k = self.split_heads(k, batch_size)  # (batch_size, num_heads, seq_len_k, depth)
      v = self.split_heads(v, batch_size)  # (batch_size, num_heads, seq_len_v, depth)

      scaled_attention, attention_weights = scaled_dot_product_attention(q, k, v, mask)
      scaled_attention = tf.transpose(scaled_attention, perm=[0, 2, 1, 3])  # (batch_size, seq_len_q, num_heads, depth)

      concat_attention = tf.reshape(scaled_attention,
                                 (batch_size, -1, self.d_model))  # (batch_size, seq_len_q, d_model)

      output = self.dense(concat_attention)  # (batch_size, seq_len_q, d_model)
      return output, attention_weights

def point_wise_feed_forward_network(d_model, dff):
   return tf.keras.Sequential([
                tf.keras.layers.Dense(dff, activation='relu'),  # (batch_size, seq_len, dff)
                tf.keras.layers.Dense(d_model)  # (batch_size, seq_len, d_model)])

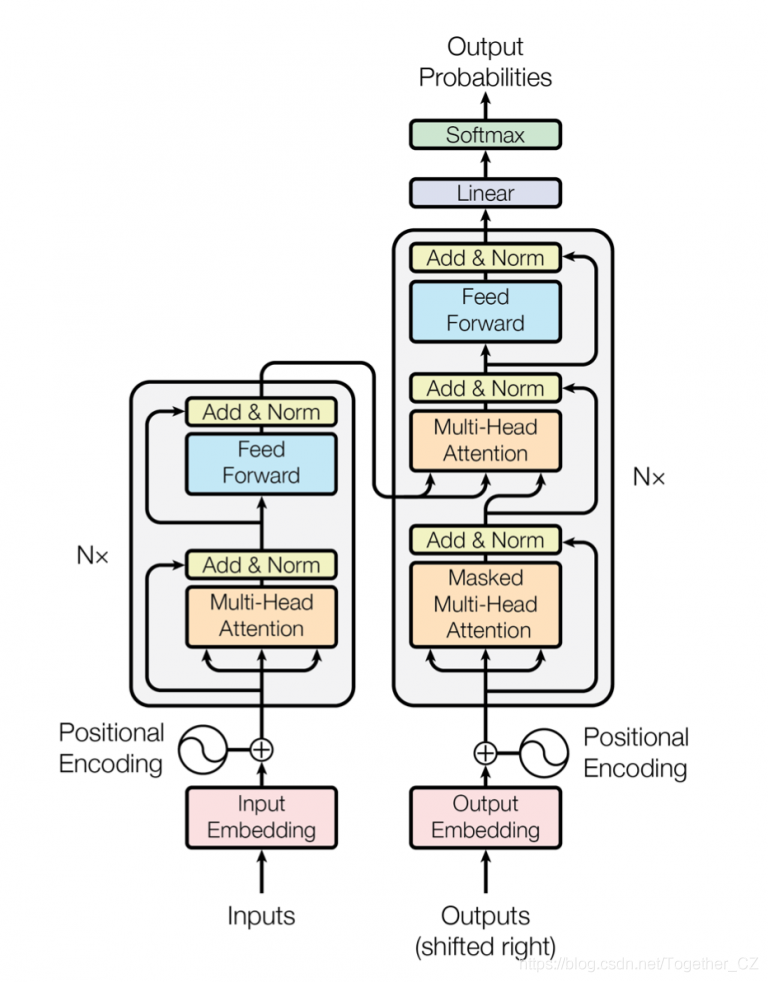

class EncoderLayer(tf.keras.layers.Layer):
   def __init__(self, d_model, num_heads, dff, rate=0.1):
      super(EncoderLayer, self).__init__()
      self.mha = MultiHeadAttention(d_model, num_heads)
      self.ffn = point_wise_feed_forward_network(d_model, dff)

      self.layernorm1 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
      self.layernorm2 = tf.keras.layers.LayerNormalization(epsilon=1e-6)

      self.dropout1 = tf.keras.layers.Dropout(rate)
      self.dropout2 = tf.keras.layers.Dropout(rate)

   def call(self, x, training, mask=None):
      attn_output, _ = self.mha(x, x, x, mask)  # (batch_size, input_seq_len, d_model)
      attn_output = self.dropout1(attn_output, training=training)
      out1 = self.layernorm1(x + attn_output)  # (batch_size, input_seq_len, d_model)

      ffn_output = self.ffn(out1)  # (batch_size, input_seq_len, d_model)
      ffn_output = self.dropout2(ffn_output, training=training)
      out2 = self.layernorm2(out1 + ffn_output)  # (batch_size, input_seq_len, d_model)
      return out2

class DecoderLayer(tf.keras.layers.Layer):
   def __init__(self, d_model, num_heads, dff, rate=0.1):
      super(DecoderLayer, self).__init__()
      self.mha1 = MultiHeadAttention(d_model, num_heads)
      self.mha2 = MultiHeadAttention(d_model, num_heads)

      self.ffn = point_wise_feed_forward_network(d_model, dff)

      self.layernorm1 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
      self.layernorm2 = tf.keras.layers.LayerNormalization(epsilon=1e-6)
      self.layernorm3 = tf.keras.layers.LayerNormalization(epsilon=1e-6)

      self.dropout1 = tf.keras.layers.Dropout(rate)
      self.dropout2 = tf.keras.layers.Dropout(rate)
      self.dropout3 = tf.keras.layers.Dropout(rate)

   def call(self, x, enc_output, training,look_ahead_mask=None, padding_mask=None):
      attn1, attn_weights_block1 = self.mha1(x, x, x, look_ahead_mask)  # (batch_size, target_seq_len, d_model)
      attn1 = self.dropout1(attn1, training=training)
      out1 = self.layernorm1(attn1 + x)

      attn2, attn_weights_block2 = self.mha2(enc_output, enc_output, out1, padding_mask)
      attn2 = self.dropout2(attn2, training=training)
      out2 = self.layernorm2(attn2 + out1)  # (batch_size, target_seq_len, d_model)

      ffn_output = self.ffn(out2)  # (batch_size, target_seq_len, d_model)
      ffn_output = self.dropout3(ffn_output, training=training)
      out3 = self.layernorm3(ffn_output + out2)  # (batch_size, target_seq_len, d_model)
      return out3, attn_weights_block1, attn_weights_block2

class Encoder(tf.keras.layers.Layer):
   def __init__(self, num_layers, d_model, num_heads, dff, row_size,col_size,rate=0.1):
      super(Encoder, self).__init__()
      self.d_model = d_model
      self.num_layers = num_layers

      self.embedding = tf.keras.layers.Dense(self.d_model,activation='relu')
      self.pos_encoding = positional_encoding_2d(row_size,col_size,self.d_model)

      self.enc_layers = [EncoderLayer(d_model, num_heads, dff, rate) for _ in range(num_layers)]
      self.dropout = tf.keras.layers.Dropout(rate)

   def call(self, x, training, mask=None):
      seq_len = tf.shape(x)[1]
      x = self.embedding(x)  # (batch_size, input_seq_len(H*W), d_model)
      x += self.pos_encoding[:, :seq_len, :]
      x = self.dropout(x, training=training)

      for i in range(self.num_layers):
         x = self.enc_layers[i](x, training, mask)

      return x  # (batch_size, input_seq_len, d_model)

class Decoder(tf.keras.layers.Layer):
   def __init__(self, num_layers,d_model,num_heads,dff, target_vocab_size, maximum_position_encoding,   rate=0.1):
      super(Decoder, self).__init__()
      self.d_model = d_model
      self.num_layers = num_layers

      self.embedding = tf.keras.layers.Embedding(target_vocab_size, d_model)
      self.pos_encoding = positional_encoding_1d(maximum_position_encoding, d_model)

      self.dec_layers = [DecoderLayer(d_model, num_heads, dff, rate)
                         for _ in range(num_layers)]
      self.dropout = tf.keras.layers.Dropout(rate)

   def call(self, x, enc_output, training,look_ahead_mask=None, padding_mask=None):
      seq_len = tf.shape(x)[1]
      attention_weights = {}

      x = self.embedding(x)  # (batch_size, target_seq_len, d_model)
      x *= tf.math.sqrt(tf.cast(self.d_model, tf.float32))
      x += self.pos_encoding[:, :seq_len, :]
      x = self.dropout(x, training=training)

      for i in range(self.num_layers):
         x, block1, block2 = self.dec_layers[i](x, enc_output, training,
                                            look_ahead_mask, padding_mask)

         attention_weights['decoder_layer{}_block1'.format(i+1)] = block1
         attention_weights['decoder_layer{}_block2'.format(i+1)] = block2

      return x, attention_weights

class Transformer(tf.keras.Model):
   def __init__(self, num_layers, d_model, num_heads, dff,row_size,col_size,
              target_vocab_size,max_pos_encoding, rate=0.1):
      super(Transformer, self).__init__()
      self.encoder = Encoder(num_layers, d_model, num_heads, dff,row_size,col_size, rate)
      self.decoder = Decoder(num_layers, d_model, num_heads, dff,
                          target_vocab_size,max_pos_encoding, rate)
      self.final_layer = tf.keras.layers.Dense(target_vocab_size)

   def call(self, inp, tar, training,look_ahead_mask=None,dec_padding_mask=None,enc_padding_mask=None   ):
      enc_output = self.encoder(inp, training, enc_padding_mask)  # (batch_size, inp_seq_len, d_model      )
      dec_output, attention_weights = self.decoder(
      tar, enc_output, training, look_ahead_mask, dec_padding_mask)
      final_output = self.final_layer(dec_output)  # (batch_size, tar_seq_len, target_vocab_size)
      return final_output, attention_weights

num_layer = 4
d_model = 512
dff = 2048
num_heads = 8
row_size = 8
col_size = 8
target_vocab_size = top_k + 1
dropout_rate = 0.1

class CustomSchedule(tf.keras.optimizers.schedules.LearningRateSchedule):
   def __init__(self, d_model, warmup_steps=4000):
      super(CustomSchedule, self).__init__()
      self.d_model = d_model
      self.d_model = tf.cast(self.d_model, tf.float32)
      self.warmup_steps = warmup_steps

   def __call__(self, step):
      arg1 = tf.math.rsqrt(step)
      arg2 = step * (self.warmup_steps ** -1.5)
      return tf.math.rsqrt(self.d_model) * tf.math.minimum(arg1, arg2)

learning_rate = CustomSchedule(d_model)
optimizer = tf.keras.optimizers.Adam(learning_rate, beta_1=0.9, beta_2=0.98,
                                    epsilon=1e-9)
loss_object = tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True, reduction='none')

def loss_function(real, pred):
   mask = tf.math.logical_not(tf.math.equal(real, 0))
   loss_ = loss_object(real, pred)
   mask = tf.cast(mask, dtype=loss_.dtype)
   loss_ *= mask
  return tf.reduce_sum(loss_)/tf.reduce_sum(mask)

train_loss = tf.keras.metrics.Mean(name='train_loss')
train_accuracy = tf.keras.metrics.SparseCategoricalAccuracy(name='train_accuracy')
transformer = Transformer(num_layer,d_model,num_heads,dff,row_size,col_size,target_vocab_size,                                 max_pos_encoding=target_vocab_size,rate=dropout_rate)

def create_masks_decoder(tar):
   look_ahead_mask = create_look_ahead_mask(tf.shape(tar)[1])
   dec_target_padding_mask = create_padding_mask(tar)
   combined_mask = tf.maximum(dec_target_padding_mask, look_ahead_mask)
   return combined_mask

@tf.function
def train_step(img_tensor, tar):
   tar_inp = tar[:, :-1]
   tar_real = tar[:, 1:]
   dec_mask = create_masks_decoder(tar_inp)
   with tf.GradientTape() as tape:
      predictions, _ = transformer(img_tensor, tar_inp,True, dec_mask)
      loss = loss_function(tar_real, predictions)

   gradients = tape.gradient(loss, transformer.trainable_variables)
   optimizer.apply_gradients(zip(gradients, transformer.trainable_variables))
   train_loss(loss)
   train_accuracy(tar_real, predictions)

for epoch in range(30):
   start = time.time()
   train_loss.reset_states()
   train_accuracy.reset_states()
   for (batch, (img_tensor, tar)) in enumerate(dataset):
      train_step(img_tensor, tar)
      if batch % 50 == 0:
         print ('Epoch {} Batch {} Loss {:.4f} Accuracy {:.4f}'.format(
         epoch + 1, batch, train_loss.result(), train_accuracy.result()))

   print ('Epoch {} Loss {:.4f} Accuracy {:.4f}'.format(epoch + 1,
                                               train_loss.result(),

                                   train_accuracy.result()))
   print ('Time taken for 1 epoch: {} secs\n'.format(time.time() - start))

def evaluate(image):
   temp_input = tf.expand_dims(load_image(image)[0], 0)
   img_tensor_val = image_features_extract_model(temp_input)
   img_tensor_val = tf.reshape(img_tensor_val, (img_tensor_val.shape[0], -1, img_tensor_val.shape[3]))
   start_token = tokenizer.word_index['<start>']
   end_token = tokenizer.word_index['<end>']
   decoder_input = [start_token]
   output = tf.expand_dims(decoder_input, 0) #tokens
   result = [] #word list

   for i in range(100):
      dec_mask = create_masks_decoder(output)
      predictions, attention_weights = transformer(img_tensor_val,output,False,dec_mask)
      predictions = predictions[: ,-1:, :]  # (batch_size, 1, vocab_size)
      predicted_id = tf.cast(tf.argmax(predictions, axis=-1), tf.int32)
      if predicted_id == end_token:
         return result,tf.squeeze(output, axis=0), attention_weights
      result.append(tokenizer.index_word[int(predicted_id)])
      output = tf.concat([output, predicted_id], axis=-1)

   return result,tf.squeeze(output, axis=0), attention_weights

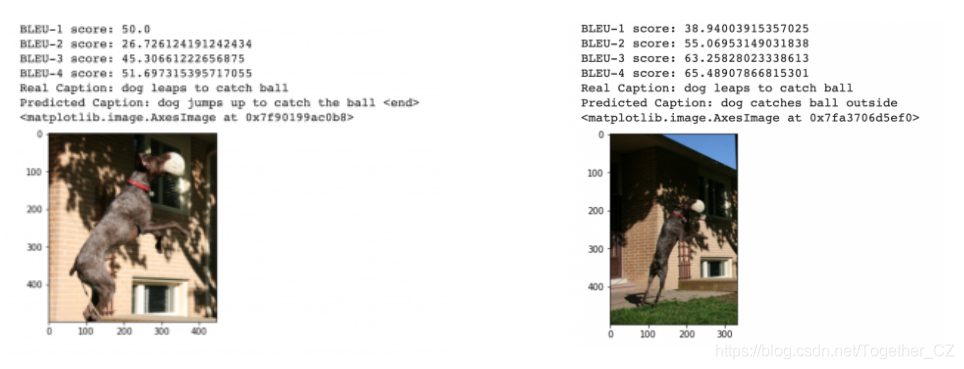

rid = np.random.randint(0, len(img_name_val))
image = img_name_val[rid]
real_caption = ' '.join([tokenizer.index_word[i] for i in cap_val[rid] if i not in [0]])
caption,result,attention_weights = evaluate(image)

first = real_caption.split(' ', 1)[1]
real_caption = first.rsplit(' ', 1)[0]

for i in caption:
   if i=="<unk>":
      caption.remove(i)

for i in real_caption:
   if i=="<unk>":
      real_caption.remove(i)

result_join = ' '.join(caption)
result_final = result_join.rsplit(' ', 1)[0]
real_appn = []
real_appn.append(real_caption.split())
reference = real_appn
candidate = caption

score = sentence_bleu(reference, candidate, weights=(1.0,0,0,0))
print(f"BLEU-1 score: {score*100}")
score = sentence_bleu(reference, candidate, weights=(0.5,0.5,0,0))
print(f"BLEU-2 score: {score*100}")
score = sentence_bleu(reference, candidate, weights=(0.3,0.3,0.3,0))
print(f"BLEU-3 score: {score*100}")
score = sentence_bleu(reference, candidate, weights=(0.25,0.25,0.25,0.25))
print(f"BLEU-4 score: {score*100}")
print ('Real Caption:', real_caption)
print ('Predicted Caption:', ' '.join(caption))
temp_image = np.array(Image.open(image))
plt.imshow(temp_image)

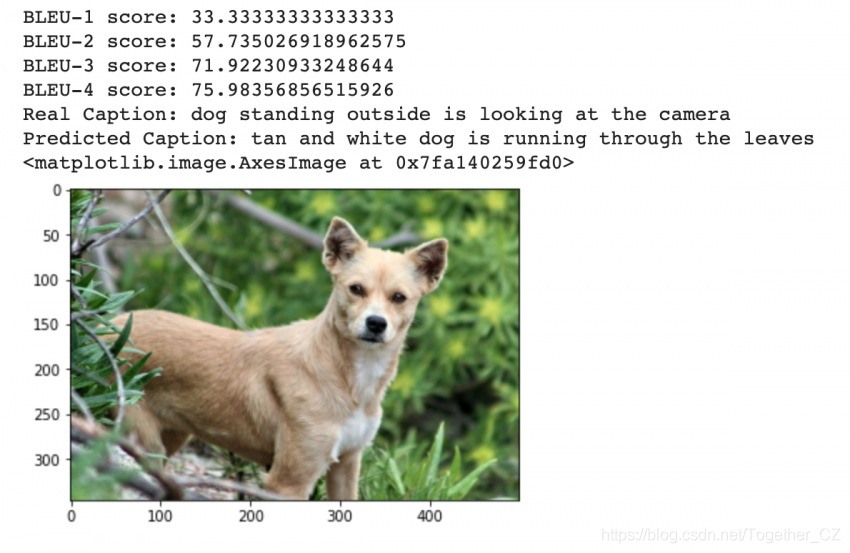

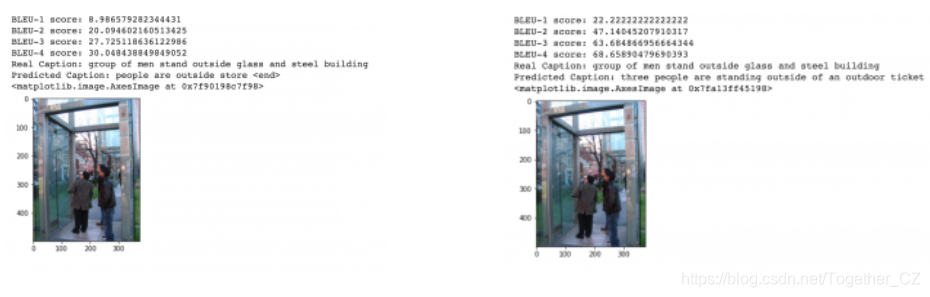

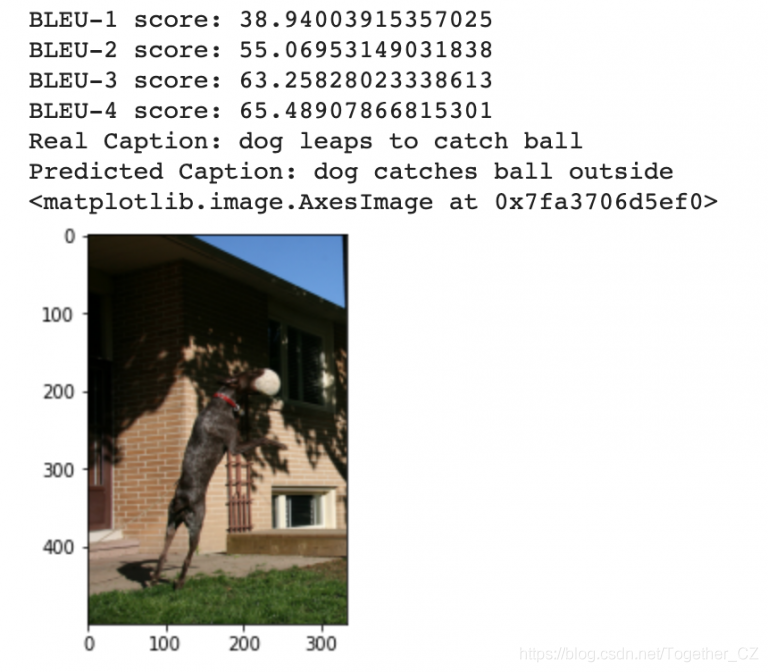

rid = np.random.randint(0, len(img_name_val))
image = img_name_val[rid]
real_caption = ' '.join([tokenizer.index_word[i] for i in cap_val[rid] if i not in [0]])
caption,result,attention_weights = evaluate(image)

first = real_caption.split(' ', 1)[1]
real_caption = first.rsplit(' ', 1)[0]

for i in caption:
   if i=="<unk>":
      caption.remove(i)

for i in real_caption:
   if i=="<unk>":
      real_caption.remove(i)

result_join = ' '.join(caption)
result_final = result_join.rsplit(' ', 1)[0]
real_appn = []
real_appn.append(real_caption.split())
reference = real_appn
candidate = caption

score = sentence_bleu(reference, candidate, weights=(1.0,0,0,0))
print(f"BLEU-1 score: {score*100}")
score = sentence_bleu(reference, candidate, weights=(0.5,0.5,0,0))
print(f"BLEU-2 score: {score*100}")
score = sentence_bleu(reference, candidate, weights=(0.3,0.3,0.3,0))
print(f"BLEU-3 score: {score*100}")
score = sentence_bleu(reference, candidate, weights=(0.25,0.25,0.25,0.25))
print(f"BLEU-4 score: {score*100}")
print ('Real Caption:', real_caption)
print ('Predicted Caption:', ' '.join(caption))
temp_image = np.array(Image.open(image))
plt.imshow(temp_image)

Appreciate the Author
