Comprehensive Guide to Attention Mechanisms in CNN: From Theory to PyTorch Implementation

About 3400 words, recommended reading time: 10+ minutes
This article will comprehensively introduce the attention mechanism in CNNs, from basic concepts to practical implementations, providing readers with in-depth understanding and practical guidance.

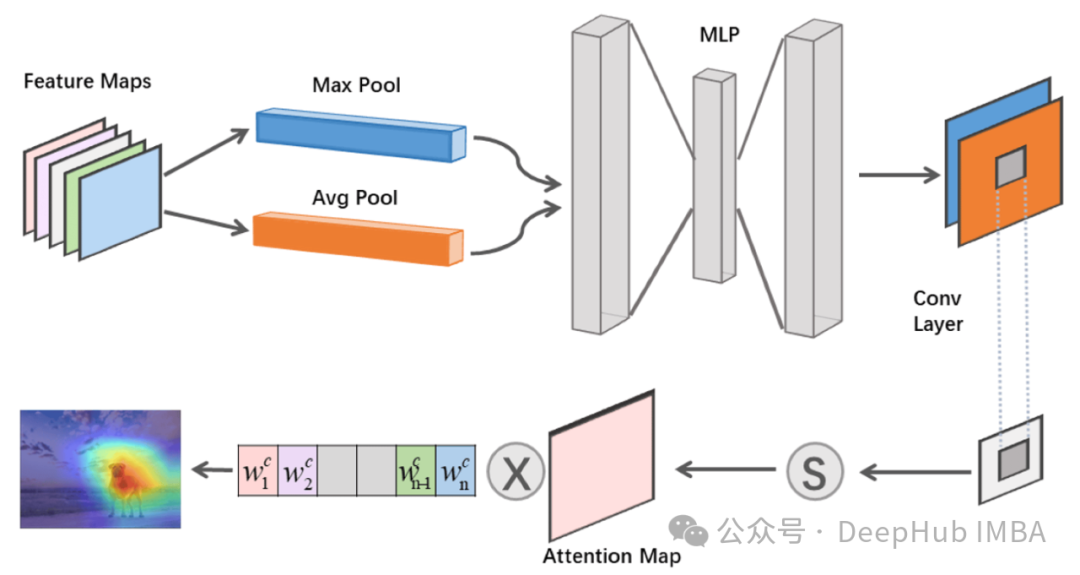

The attention mechanism has become an indispensable component of deep learning models, especially in Convolutional Neural Networks (CNNs). By enabling models to selectively focus on the most relevant parts of the input data, the attention mechanism significantly enhances the performance of CNNs in complex tasks such as image classification, object detection, and semantic segmentation. This article will comprehensively introduce the attention mechanism in CNNs, from basic concepts to practical implementations, providing readers with in-depth understanding and practical guidance.

Definition of Attention Mechanism in CNN

The application of the attention mechanism in CNNs is inspired by the human visual system. In the human visual system, the brain can selectively focus on specific areas within the field of view while suppressing other less relevant information. Similarly, the attention mechanism in CNNs allows the model to prioritize certain features or regions when processing images, thereby enhancing the model’s ability to extract key information and make accurate predictions.

For example, in face recognition tasks, the model may learn to primarily focus on facial regions, as they contain more distinctive features than the background or clothing. This selective attention ensures that the model can utilize the most relevant information in the image more effectively, thereby improving overall performance.

Traditional CNNs often assign the same importance to all parts of an image when processing it. This approach can lead to suboptimal performance when dealing with complex scenes or tasks that require fine-grained recognition. The introduction of the attention mechanism aims to address the following challenges:

• Selective Focus:Different parts of an image contribute differently to specific tasks. The attention mechanism allows the model to concentrate on the most relevant parts, improving the quality of feature extraction.
• Handling Complex and Noisy Data:Real-world images often contain noise or irrelevant information. The attention mechanism helps the model filter out these distractions and focus on key areas, enhancing the model’s robustness.
• Capturing Long-Distance Dependencies:CNNs primarily capture local features through convolution operations. The attention mechanism enables the model to capture long-distance dependencies, which is crucial for understanding the global context of an image.

• Enhancing Interpretability:The attention mechanism enhances model interpretability by highlighting the most influential regions of the image during the model’s decision-making process.

Types of Attention Mechanism in CNN

The attention mechanisms in CNNs can be classified based on the dimensions they focus on:

• Channel Attention:Focuses on the importance of different feature channels, such as the Squeeze-and-Excitation (SE) module.
• Spatial Attention:Focuses on the importance of different spatial regions in the image, such as the Gather-Excite Network (GENet) and Point-wise Spatial Attention Network (PSANet).

• Hybrid Attention:Combines multiple attention mechanisms, such as the Convolutional Block Attention Module (CBAM) that uses both spatial and channel attention.

How Attention Mechanism Works in CNN

The working process of the attention mechanism in CNNs typically includes the following steps:

• Feature Extraction:The CNN first extracts feature maps from the input image.
• Attention Calculation:Attention weights are calculated based on the extracted feature maps to determine the importance of different features or regions.
• Feature Recalibration:The computed attention weights are applied to the original feature maps, enhancing important features and suppressing less important ones.

• Subsequent Processing:The recalibrated features are used for classification, detection, or other downstream tasks.

PyTorch Implementation of Attention Mechanisms

Next, we will introduce several common attention mechanisms implemented in PyTorch, including SE module, ECA module, PSANet, and CBAM.

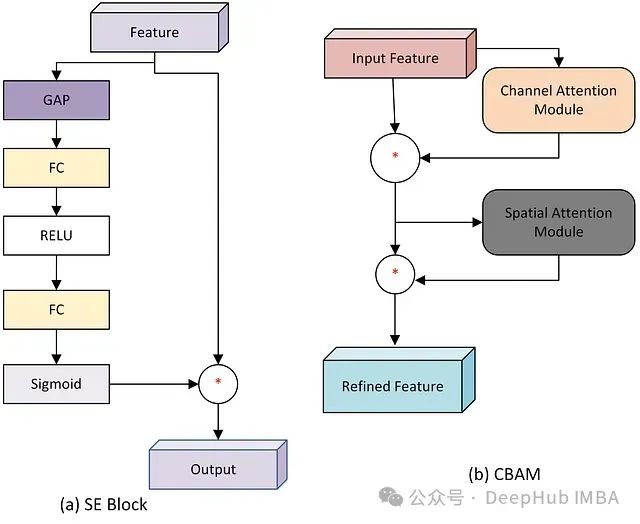

1. Squeeze-and-Excitation (SE) Module

The SE module introduces channel-level attention by modeling the interdependencies between channels. It first “squeezes” the spatial information and then “excites” each channel based on this information.

The workflow of the SE module is as follows:

• Global Average Pooling (GAP):Compresses each feature map into a scalar value.
• Fully Connected Layer:Processes the compressed features through two fully connected layers, where the first layer reduces the dimensionality, and the second layer restores the original dimensionality.
• Activation Function:Uses ReLU and Sigmoid activation functions to introduce non-linearity.

• Recalibration:Weights the original feature maps using the obtained channel weights.

The PyTorch implementation of the SE module is as follows:

 import torch
from torch import nn

class SEAttention(nn.Module):
    def __init__(self, channel, reduction=16):
        super().__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.fc = nn.Sequential(
            nn.Linear(channel, channel // reduction, bias=False),
            nn.ReLU(inplace=True),
            nn.Linear(channel // reduction, channel, bias=False),
            nn.Sigmoid()
        )

    def forward(self, x):
        b, c, _, _ = x.size()
        y = self.avg_pool(x).view(b, c)
        y = self.fc(y).view(b, c, 1, 1)
        return x * y.expand_as(x)

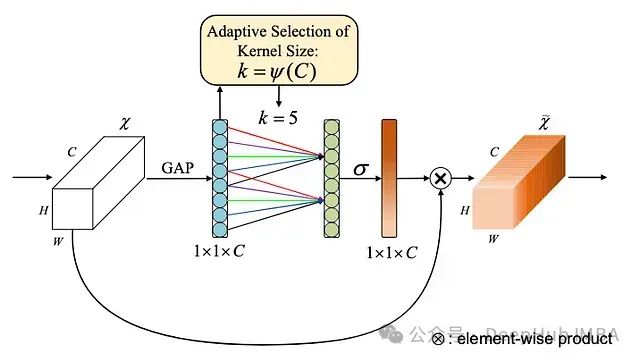

2. ECA-Net (Efficient Channel Attention)

The ECA module provides a more efficient channel attention mechanism by using 1D convolution instead of fully connected layers in the SE module, greatly reducing computational cost.

The main features of the ECA module include:

• Adaptive Kernel Size:Automatically selects the kernel size of the 1D convolution based on the number of channels.
• No Dimensionality Reduction:Operates directly on the original channels to avoid information loss.

• Local Cross-Channel Interaction:Captures local inter-channel dependencies through 1D convolution.

The PyTorch implementation of the ECA module is as follows:

 import torch
from torch import nn

class ECAAttention(nn.Module):
    def __init__(self, channel, k_size=3):
        super().__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.conv = nn.Conv1d(1, 1, kernel_size=k_size, padding=(k_size - 1) // 2, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        y = self.avg_pool(x)
        y = self.conv(y.squeeze(-1).transpose(-1, -2)).transpose(-1, -2).unsqueeze(-1)
        y = self.sigmoid(y)
        return x * y.expand_as(x)

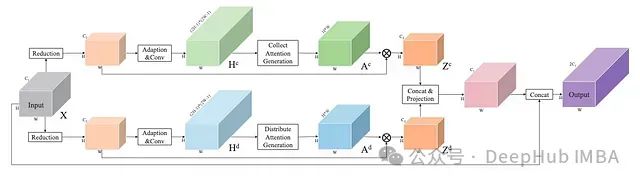

3. PSANet (Point-wise Spatial Attention Network)

PSANet emphasizes the importance of spatial attention, calculating an attention map for each position in the feature map, considering the relationship of that position with all other positions.

The main components of PSANet include:

• Feature Dimensionality Reduction:Reduces the number of channels to improve efficiency.
• Collect and Distribute Attention:Calculates weights for each point to collect information from other points and distribute information to other points.

• Feature Fusion:Fuses the original features with the attention-weighted features.

Below is a simplified PyTorch implementation of PSANet:

 import torch
from torch import nn
import torch.nn.functional as F

class PSAModule(nn.Module):
    def __init__(self, in_channels, out_channels):
        super().__init__()
        self.conv_reduce = nn.Conv2d(in_channels, out_channels, 1)
        self.collect = nn.Conv2d(out_channels, out_channels, 1)
        self.distribute = nn.Conv2d(out_channels, out_channels, 1)

    def forward(self, x):
        x = self.conv_reduce(x)
        b, c, h, w = x.size()

        # Collect
        x_collect = self.collect(x).view(b, c, -1)
        x_collect = F.softmax(x_collect, dim=-1)

        # Distribute
        x_distribute = self.distribute(x).view(b, c, -1)
        x_distribute = F.softmax(x_distribute, dim=1)

        # Attention
        x_att = torch.bmm(x_collect, x_distribute.permute(0, 2, 1)).view(b, c, h, w)

        return x + x_att

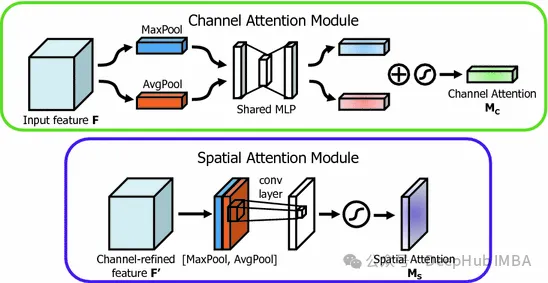

4. CBAM (Convolutional Block Attention Module)

CBAM combines channel attention and spatial attention, focusing on “what” features are important and “where” is important.

The main steps of CBAM include:

• Channel Attention:Generates channel weights using global average pooling and max pooling through a multi-layer perceptron.
• Spatial Attention:Generates a spatial attention map using channel pooling and convolution operations.

• Sequential Application:Applies channel attention first, followed by spatial attention.

The PyTorch implementation of CBAM is as follows:

 import torch
import torch.nn as nn
import torch.nn.functional as F

class ChannelAttention(nn.Module):
    def __init__(self, in_planes, ratio=16):
        super().__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.max_pool = nn.AdaptiveMaxPool2d(1)
        self.fc1 = nn.Conv2d(in_planes, in_planes // ratio, 1, bias=False)
        self.relu1 = nn.ReLU()
        self.fc2 = nn.Conv2d(in_planes // ratio, in_planes, 1, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = self.fc2(self.relu1(self.fc1(self.avg_pool(x))))
        max_out = self.fc2(self.relu1(self.fc1(self.max_pool(x))))
        out = avg_out + max_out
        return self.sigmoid(out)

class SpatialAttention(nn.Module):
    def __init__(self, kernel_size=7):
        super().__init__()
        self.conv1 = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = torch.mean(x, dim=1, keepdim=True)
        max_out, _ = torch.max(x, dim=1, keepdim=True)
        x = torch.cat([avg_out, max_out], dim=1)
        x = self.conv1(x)
        return self.sigmoid(x)

class CBAM(nn.Module):
    def __init__(self, in_planes, ratio=16, kernel_size=7):
        super().__init__()
        self.ca = ChannelAttention(in_planes, ratio)
        self.sa = SpatialAttention(kernel_size)

    def forward(self, x):
        x = x * self.ca(x)
        x = x * self.sa(x)
        return x

Practical Applications of Attention Mechanisms in CNN

Attention mechanisms have shown significant effects in various computer vision tasks:

• Image Classification:The attention mechanism helps the model focus on the most discriminative regions in the image, improving classification accuracy, especially in complex scenes and fine-grained classification tasks.
• Object Detection:By emphasizing important regions and suppressing background information, the attention mechanism enhances the model’s ability to locate and identify objects.
• Semantic Segmentation:The attention mechanism helps accurately delineate object boundaries, improving segmentation accuracy, particularly in complex multi-class segmentation tasks.

• Medical Image Analysis:In the field of medical imaging, the attention mechanism can help the model focus on potential lesion areas while reducing interference from normal tissues, improving diagnostic accuracy and reliability.

Although attention mechanisms have significantly improved CNN performance in many aspects, some challenges still exist:

• Computational Overhead:Some attention mechanisms may introduce additional computational complexity, which can become a bottleneck in real-time applications or resource-constrained environments.
• Model Complexity:Introducing attention mechanisms may increase the complexity of the model, making training and optimization more challenging.
• Overfitting Risk:Complex attention mechanisms may increase the risk of overfitting, especially in cases with limited training data.

• Generalization Capability:Designing attention mechanisms that generalize well across different tasks and datasets remains an open research question.

Conclusion

The attention mechanism has become an indispensable tool in deep learning, especially for CNNs. By allowing models to focus on the most relevant parts of the input, these mechanisms significantly enhance CNN performance across a wide range of tasks.

As deep learning continues to evolve, attention mechanisms will undoubtedly play a key role in developing more accurate, efficient, and interpretable models. Whether you are working on image classification, object detection, or any other vision-related task, adapting attention mechanisms into CNN architectures is a powerful way to push the boundaries of model performance.
