New Paper: Domain-Specific Corpus and Pre-trained Models for NLP in Architecture

DOI: https://doi.org/10.1016/j.compind.2022.103733

50 Days Free Access Link: https://authors.elsevier.com/a/1fHOibquFR5MK

00

TL;DR

There is significant attention on the application of AI in the architecture field. The construction industry contains a large amount of textual information (e.g., engineering specifications, contracts, and construction documents), which has rich domain concepts and semantic features, containing complex domain knowledge. For example, every engineer can easily understand that “The fire resistance of firewalls in Class A and B factories and Class A, B, and C warehouses should not be less than 4.00h.” But can a computer automatically understand this? Natural language processing (NLP) technology is expected to achieve breakthroughs in this area, realizing automated text information processing and knowledge sharing, reducing manual input, and achieving industry transformation and upgrading.

However, existing deep learning-based NLP models in the architecture field still rely on a large amount of manual data annotation (as the saying goes: the more intelligence, the more manual work). Therefore, this paper explores the method of improving model performance using domain text prior knowledge without additional manual annotation. Specific work includes: (1) establishing and publicly releasing a domain-specific corpus for architecture, (2) systematically exploring the enhancement effects of different types of corpora and pre-training methods on models, and (3) proposing the architecture domain pre-trained model ARCBERT, which can automatically learn domain knowledge from unlabeled corpora and significantly improve the performance of various NLP tasks in the domain.

01

Abstract

As an important task in the construction industry, the information processing and retrieval of unstructured text data based on natural language processing (NLP) is receiving increasing attention. With the development of deep learning (DL) technology and open datasets for model pre-training, many NLP methods have also been further developed and improved. However, there is currently little research on domain-specific pretrained language models in the AEC field and their advantages. The main reasons are (1) the lack of a unified publicly available dataset for model evaluation, and (2) the scarcity of publicly available domain corpora for further research.

In the AEC field, deep learning-based methods still require very expensive manual annotations to prepare large training datasets. Therefore, it is necessary to explore how domain unlabeled corpora affect the performance of deep learning-based NLP tasks in the AEC field, thereby further enhancing model performance.

To address the above issues, the technical roadmap for this study is shown in Figure 1. Specifically, this study first developed a domain-specific corpus for architecture (open-sourced, access link: https://github.com/SkydustZ/AEC-domain-corpora/tree/main/domain%20corpus). Then, based on two types of domain corpora (in-domain and close-domain) and two pre-training methods (static word embedding and contextual word embedding), various pre-trained language models were trained. On this basis, this paper systematically studied the impact of pre-training corpora and methods on the performance of deep learning models using two downstream tasks in automated rule checking (ARC) (i.e., text classification (TC) and named entity recognition (NER)) as typical cases. It is worth mentioning that the ARCBERT model, further pre-trained based on the domain corpus developed in this paper, achieved optimal results on typical downstream NLP tasks in ARC, surpassing all other models. This means that significant improvements in the performance of various NLP tasks can be achieved through automatic learning from domain corpus prior knowledge without additional manual annotation.

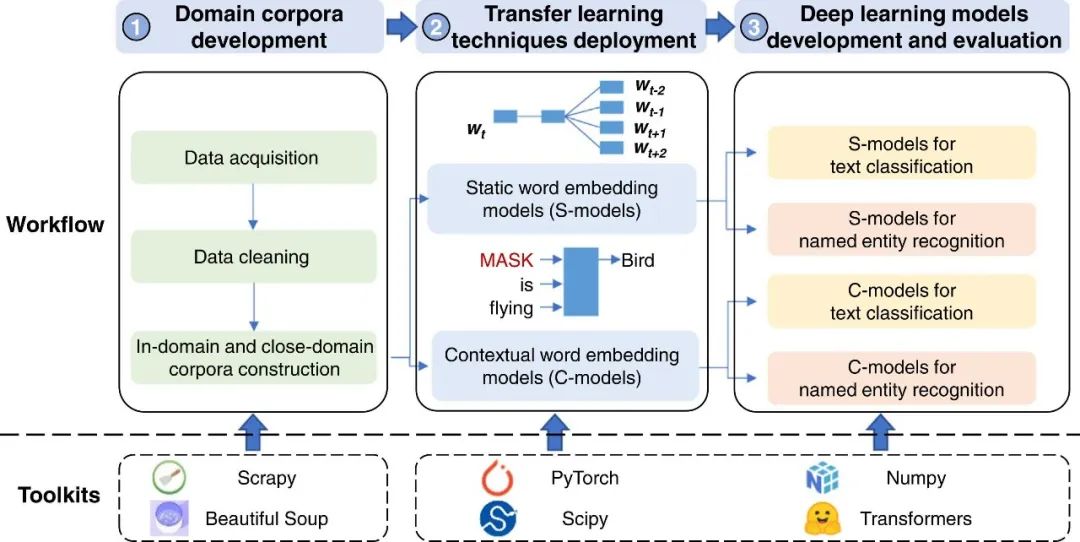

Figure 1 Technical roadmap for enhancing deep learning models with domain corpora and pre-training methods

02

Development of Domain Corpus

First, this work collected a large amount of domain corpus, and then constructed in-domain corpus (this corpus consists of civil engineering regulatory texts, which are also the target corpus for ARC tasks, hence called in-domain) and close-domain corpus (this corpus consists of civil engineering materials including civil engineering encyclopedia entries, which are close to the ARC corpus, hence called close-domain).

Corpus establishment method: web scraping relevant texts, data cleaning (filtering irrelevant content, splitting long texts). The constructed domain corpus is shown in Table 1.

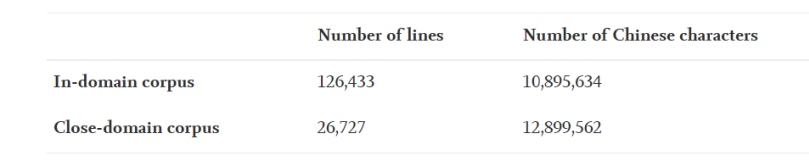

Table 1 Statistics of the Domain Corpus

03

Pre-trained Models

The pre-trained word vector models can be divided into static word embedding models and dynamic word embedding models (also known as contextual word embedding models). Static word embedding models assume that the semantics of any word do not change with context. Dynamic word embedding assumes that the semantics of words change with context.

For the training of static word embedding models, the technical roadmap is shown in Figure 2. Using Chinese Wikipedia corpus and domain corpus based on the skip-gram model, four word embedding models were trained: (1) general model, trained using the Chinese Wikipedia corpus (referred to as Wiki corpus); (2) in-domain model, trained using both Wiki and in-domain corpus; (3) close-domain model, trained using both Wiki and close-domain corpus; (4) mixed-domain model, trained using Wiki, in-domain, and close-domain corpus.

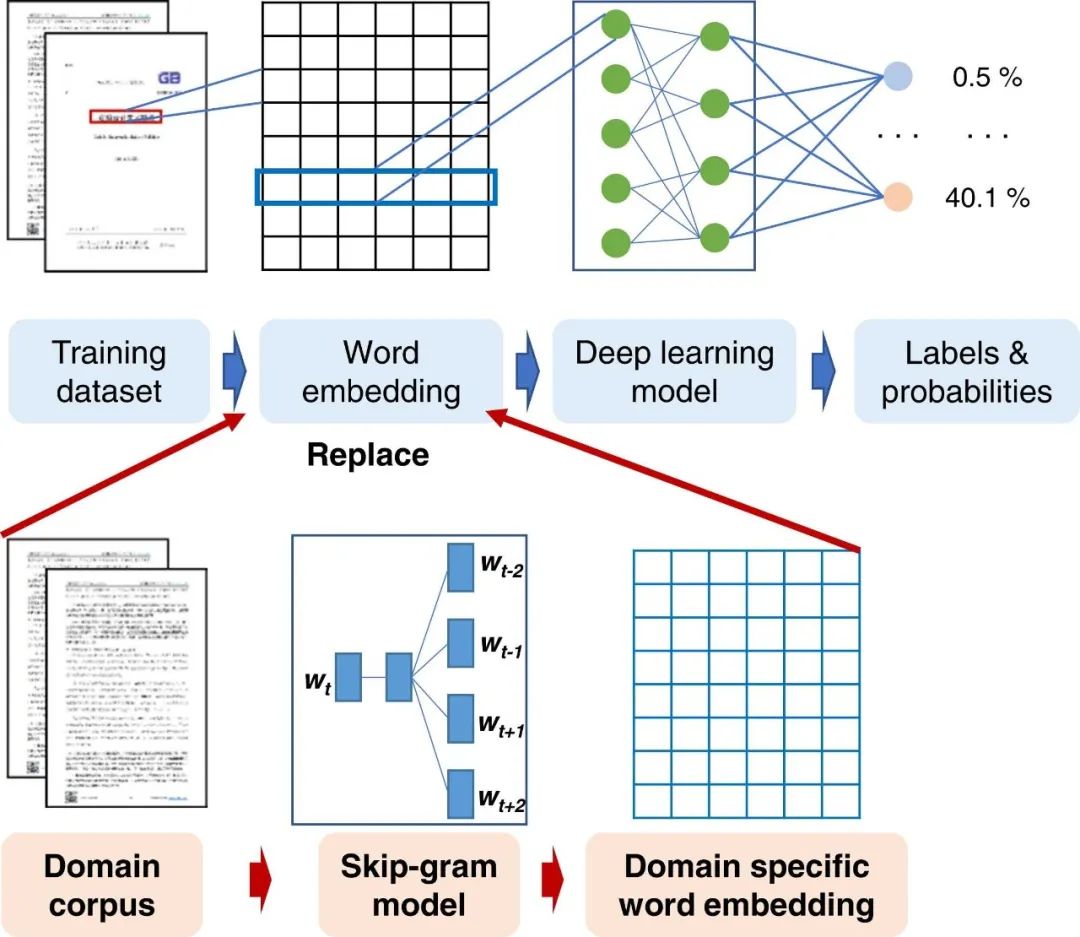

Figure 2 Method for enhancing deep learning models with architecture-specific static word embedding models

For the training of dynamic word embedding models, the technical roadmap is shown in Figure 3. First, two benchmark models were selected: (1) bert-base-chinese[1] and (2) ERNIE[2]. Then, the constructed domain corpus was combined and divided to explore the influence of the type and quantity of domain corpus. Specifically including: (1) in-domain corpus; (2) close-domain corpus; (3) mixed-domain corpus (mixed in-domain and close-domain); (4) 1/3 of the in-domain corpus; (5) 1/5 of the in-domain corpus, totaling five derived corpora.

On this basis, further pre-training was conducted using the masked language model with the aforementioned five domain corpora, resulting in the training of 10 pre-trained models, as shown in Table 2.

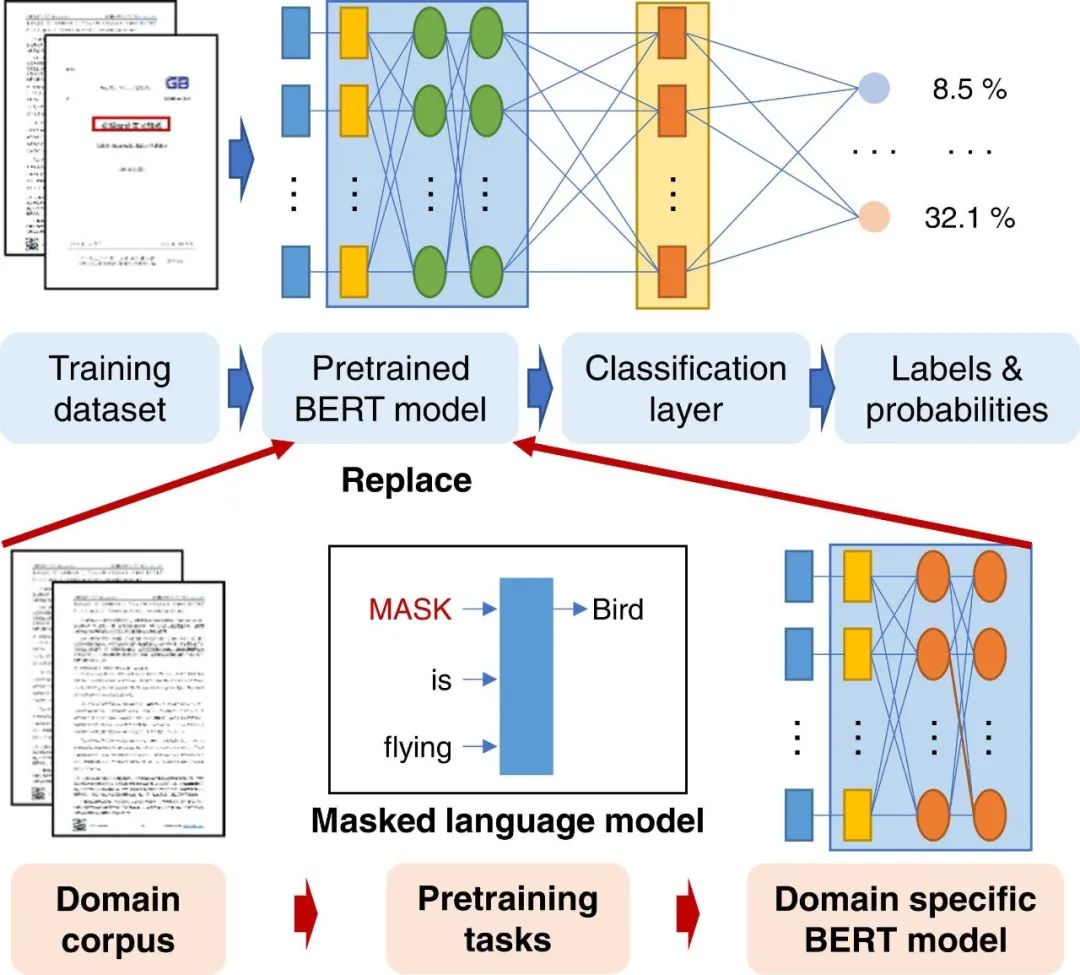

Figure 3 Method for enhancing deep learning models with architecture-specific dynamic word embedding models

Table 2 Statistics of the Domain Corpus

04

Evaluation of Performance Improvement of Deep Learning Models

To evaluate the performance improvement of the aforementioned pre-trained models on deep learning models, a series of experiments were conducted, and the following are the configurations of the experiments.

(1) Dataset selection: The methods and domain corpus in this study were evaluated on two datasets, including the regulatory TC dataset[3] and NER dataset[4].

(2) Metric selection: For the TC model, weighted F₁ (weighted F₁) was selected. For the NER model, macro average F₁ (macro F₁) was selected for measuring results. First, the precision (P), recall (R), and F₁ score (F₁) for each semantic label were calculated:

Where N {correct, labeled, true} represents the number of elements judged to be correct for each label, the total number of labeled elements, and the number of elements that are actually labeled correctly.

Then calculate the weighted F₁ and macro average F₁:

Where n_i represents the number of elements for the ith semantic label;m represents the number of types of semantic labels.

(3) Dataset division: The two datasets were randomly split in the ratio Train: Validation: Test = 0.8: 0.1: 0.1.

(4) Model training and fine-tuning: Four types of experiments were conducted, including: 1) static word embedding model for TC; 2) static word embedding model for NER; 3) further pre-trained dynamic word embedding model for TC; 4) further pre-trained dynamic word embedding model for NER.

(5) Experimental conclusions: The summary of the experimental results is shown in Figures 4 and 5. The experimental results indicate that for the TC and NER tasks in ARC, in-domain (in-domain) corpus can be used to train domain-specific word embedding models or further pre-train BERT and ERNIE models to improve model performance without additional manual annotation.

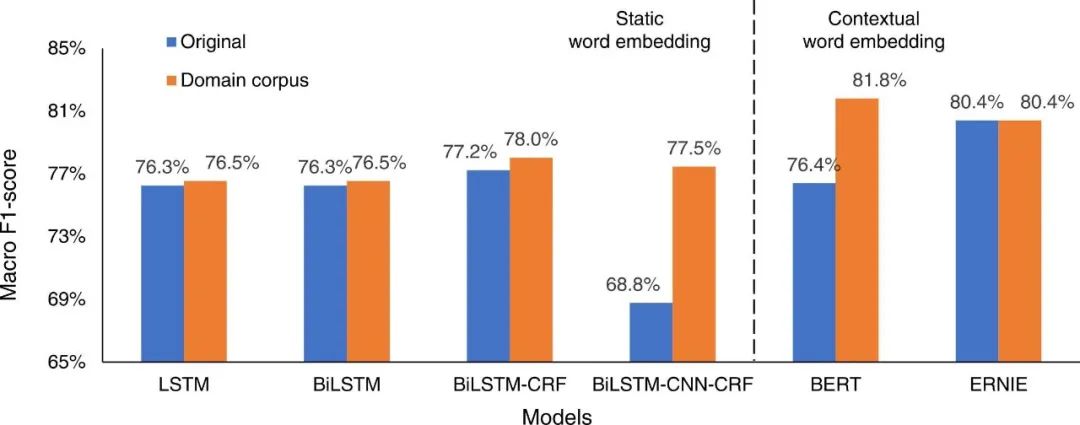

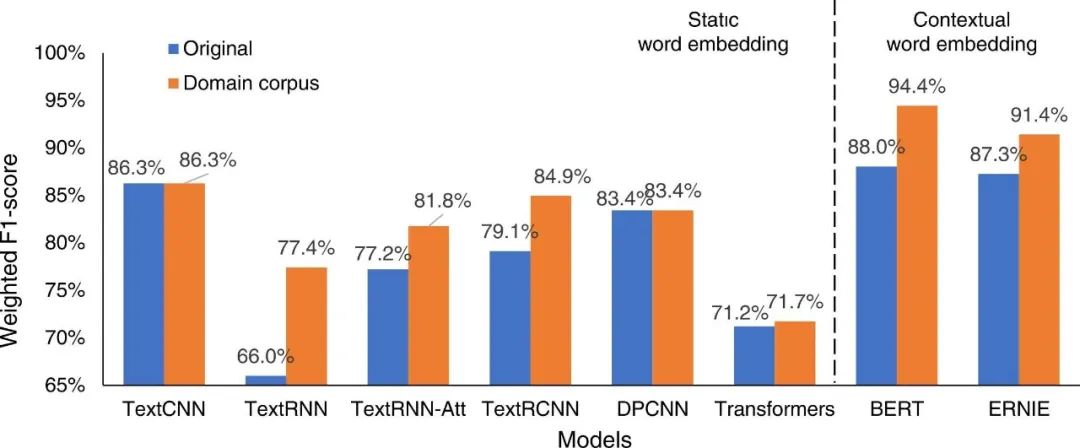

Figure 4 Performance of various models on TC tasks

Figure 5 Performance of various models on NER tasks

05

Conclusion

In this study, the impact of domain corpus on the performance of deep learning methods in NLP tasks in the architecture field was systematically studied. First, a domain corpus was developed and publicly released, and then, based on four experiments, the advantages of the developed domain corpus and deep learning models based on dynamic word embedding models (such as BERT) were demonstrated:

(1) For TC and NER tasks, the domain corpus can optimize deep learning models based on static word embedding and dynamic word embedding models. For TC tasks, the weighted F₁ scores of both types of models improved by 11.4% and 6.4%, respectively, while for NER tasks, the macro average F₁ scores improved by 8.7% and 5.4%, respectively.

(2) The BERT model pre-trained on the domain corpus (ARCBERT) outperformed the deep learning models based on static word embedding, with the weighted F₁ score for TC improved by 8.1%, and the macro average F₁ score for NER improved by 3.8%. Dynamic word embedding-based deep learning models (such as BERT and ERNIE) performed better in NER and TC tasks than other models.

Finally, this study proposed a pre-trained model with a weighted F₁ score of 94.4% in TC tasks, called ARCBERT _Large. It also proposed a pre-trained model with a macro average F₁ score of 81.8% in NER tasks, called ARCBERT _Small. These two models achieved globally optimal results in TC and NER tasks. The domain corpus and pre-trained model for architecture developed in this study showed good results in various NLP tasks and may inspire various future NLP-related research and applications in the architecture field.

[1] Hugging Face, 2019. Bert-base-chinese.https://huggingface.co/bert-base-chinese/tree/main

[2] Sun, Y., Wang, S., Li, Y., Feng, S., Chen, X., Zhang, H., Tian, X., Zhu, D., Tian, H., Wu, H., 2019. Ernie: Enhanced representation through knowledge integration. arXiv preprint arXiv:1904.09223.

[3] Zheng, Z., Zhou, Y.C., Chen, K.Y., Lu, X.Z., Lin, J.R., She, Z.T., 2022. Text classification-based approach for automatically evaluating building codes’ interpretability. (in preparation).

[4] Zhou, Y.C., Zheng, Z., Lin J.R., Lu X.Z., 2020. Deep natural language processing-based rule transformation for automated regulatory compliance checking. Preprint. https://doi.org/10.13140/RG.2.2.22993.45921
