This article is about 3000 words long and is recommended to be read in 8 minutes.
This article will help everyone understand some concepts that may be confusing during the learning process.

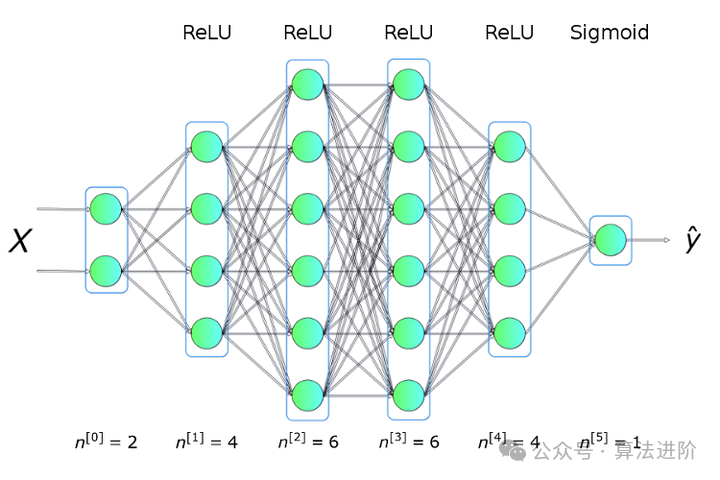

Nowadays, after becoming proficient in using specialized frameworks and high-level libraries like Keras、TensorFlow or PyTorch , we no longer have to frequently worry about the size of neural network models or remember formulas for activation functions and derivatives. With these libraries and frameworks, creating a neural network, even a very complex architecture, often only requires a few imports and a few lines of code. For example:Building Neural Networks Using FrameworksFirst, I will demonstrate a popular neural network framework — Keras for building neural network models.
from keras.models import Sequential
from keras.layers import Dense
model = Sequential()
model.add(Dense(4, input_dim=2, activation='relu'))
model.add(Dense(6, activation='relu'))
model.add(Dense(6, activation='relu'))
model.add(Dense(4, activation='relu'))
model.add(Dense(1, activation='sigmoid'))
model.compile(loss='binary_crossentropy', optimizer='adam', metrics=['accuracy'])
model.fit(X_train, y_train, epochs=50, verbose=0)

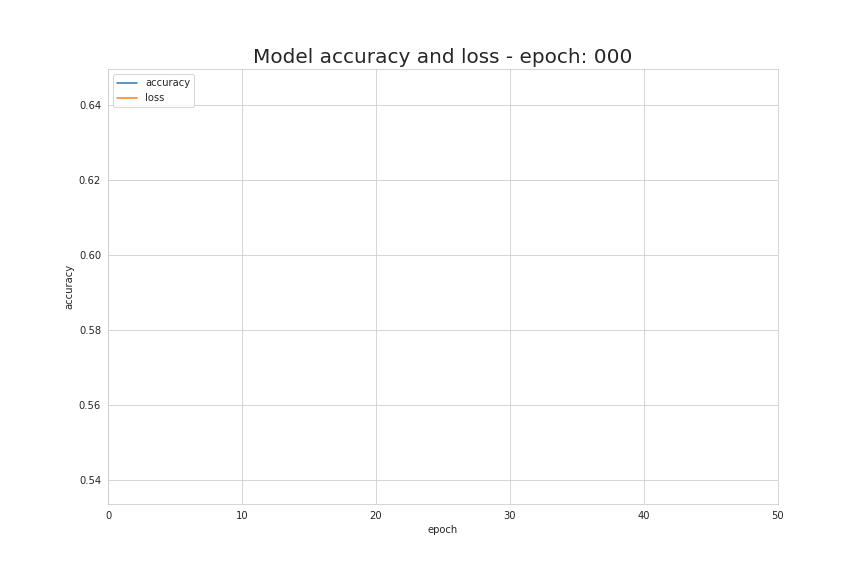

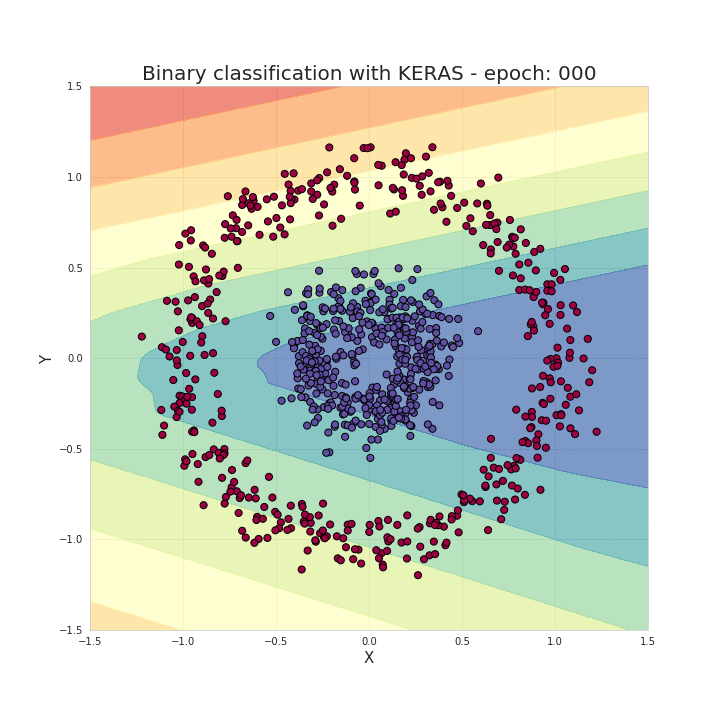

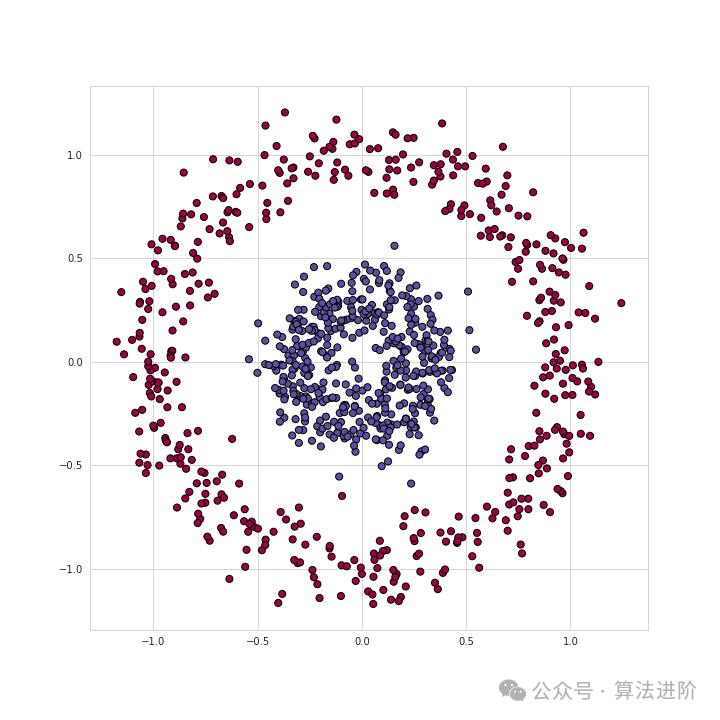

As mentioned earlier, it only takes a few imports and a few lines of code to create and train a model, achieving nearly 100% accuracy for classification problems. Our task is to summarize the hyperparameters for the chosen model structure, such as the number of network layers, the number of neurons in each layer, activation functions, and the number of training epochs. Now let’s take a look at what happens during the training process, and we can see that the data is correctly separated!With these frameworks, it indeed saves us a lot of time writing bugs (…) and makes our work more streamlined. However, understanding the underlying principles of neural networks greatly helps us choose model architectures, tune parameters, or optimize models.Principles of Neural NetworksTo gain a deeper understanding of how neural networks work, this article will help everyone understand some concepts that may be confusing during the learning process. I will try to make it less painful for those who are not interested in algebra and calculus, but as the title of the article suggests, this article mainly discusses mathematical principles, so a lot of mathematics will be discussed, just a reminder here.For example, we want to solve a binary classification problem with a dataset, as shown above.The data points form two categories in a circular shape, and distinguishing this data is very troublesome for many traditional machine learning algorithms, but neural networks can handle this nonlinear classification problem well.To solve this problem, we will use a neural network structure as shown in the following figure, which has 5 fully connected layers, each with a different number of neurons. For the hidden layers, we will use ReLU as the activation function, and in the output layer, we will use a sigmoid function. This is a relatively simple structure but sufficient to solve our problem.What is a Neural Network?First, let’s answer this key question: what is a neural network? It is a computer program created based on biological inspiration that can learn knowledge and independently discover relationships in data. As shown in Figure 2, a neural network is a series of neurons arranged in layers that are connected in a certain way to communicate with each other.Single NeuronEach neuron receives a series of x values (numbers from 1 to n) as input and calculates the predicted y-hat value. The vector x actually contains the feature values of one sample among m samples in the training set. Each neuron also has its own set of parameters, usually referred to as w (a column vector of weights) and b (bias), which change continuously during the learning process. In each iteration, the neuron calculates its weighted average based on the current weight vector x of vector x and adds the bias. Finally, the computed result is passed into a nonlinear function or function g. I will mention some of the most common activation functions below.
Figure: Single NeuronSingle Network LayerNow, let’s narrow our focus a bit and think about how the entire network layer of a neural network performs mathematical operations. We will use the calculation knowledge of a single neuron to vectorize the entire layer and integrate these calculations into matrix equations. To keep the mathematical notation consistent, these equations will be written for the selected network layer. Additionally, the subscript i indicates the order of neurons in that layer.

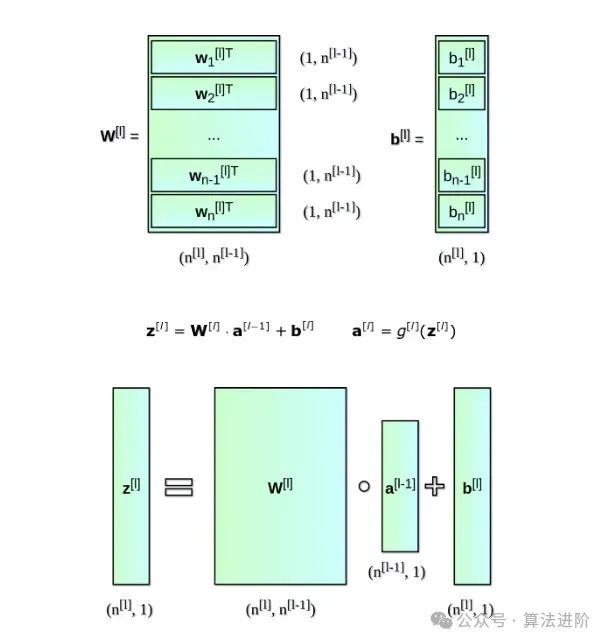

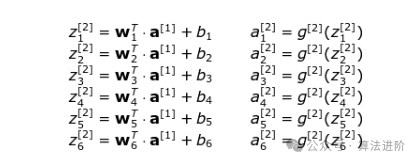

Figure: Single Network LayerAnother important thing: when we write equations for a single neuron, we use x and y-hat, which represent the feature column vector and predicted value, respectively. When switching to general symbols for the network layer, we use vector a — meaning the activation corresponding to that network layer. Thus, the vector x is the activation of network layer 0 (the input layer). Each neuron in the network layer performs the same operations according to the following equation:To make it clearer, let’s write down the formula for layer 2:You can see that for each network layer, we must perform a series of very similar calculations. Using a for loop here is not very efficient, so we switch to vectorization to speed up calculations. First, by stacking the horizontal vectors of weights w together, we create matrix W. Similarly, we stack the biases of each neuron in the network layer together to create vertical vector b. Now we can smoothly create a matrix equation to compute all the neurons in that network layer at once. We also write down the dimensions of the matrices and vectors used.Vectorization in Multiple ExamplesSo far, the equations we have used only involve a single example. In the learning process of neural networks, you typically deal with a large amount of data, potentially up to millions of entries. Therefore, the next step is to implement vectorization across multiple examples. Suppose our dataset has m entries, each with nx features. First, we stack the vertical vectors x, a, and z of each layer together to create matrices X, A, and Z, respectively. Then, we rewrite the previously listed equations according to the newly created matrices.What is an Activation Function? Why Do We Need It?The activation function is one of the most important parts of a neural network. Without an activation function, our neural network would merely be a combination of linear functions, which would just be a linear function. If that were the case, the model’s scalability would be very limited, not much better than logistic regression. The non-linear part allows the model to have greater flexibility and create complex functions during the learning process.Moreover, the activation function has a significant impact on the learning speed of the model, which is one of the main criteria for choosing a model. The following figure shows some commonly used activation functions. Currently, the most commonly used activation function in hidden layers should be ReLU. When dealing with binary classification problems, especially when we want the model to return values between 0 and 1, we sometimes also use the sigmoid function, especially in the output layer.Loss FunctionThe basic source of information during the learning process is the value of the loss function. Generally speaking, the purpose of using a loss function is to show how far we are from the “ideal” situation. In our example, we used binary cross-entropy, but different functions can be used depending on the specific problem we are dealing with. The function we used is represented by the following formula, and the visualization of its value changes during the learning process is shown in the animated diagram below. It shows that the value of the loss function decreases continuously with each iteration, and the accuracy value also increases continuously.How Do Neural Networks Learn?The learning process involves continuously changing the values of parameters W and b to minimize the loss function. To achieve this goal, we use calculus and gradient descent to find the minimum value of the function. In each iteration, we calculate the partial derivative of the loss function with respect to each neural network parameter. For those who are not familiar with this type of calculation, let me point out that derivatives can describe the slope of a function. Because of this, we know how to manipulate the variables to move down in the graph. To give you a visual understanding of how gradient descent works, I have prepared a small visualization, as shown in the figure below. You can see that as the training batches increase, we get closer to the minimum value. The same process occurs in our neural network — the gradient calculated in each iteration shows us which direction to move. The main difference is that in our neural network, we have more parameters to adjust. So how do we calculate such complex derivatives?BackpropagationBackpropagation is an algorithm that allows us to compute very complex gradients, such as the gradients needed in our example. The parameters of the neural network are adjusted according to the following formula.In the above equation, α represents the learning rate — this hyperparameter allows us to control the size of the adjustment. Choosing the learning rate is crucial; if it’s set too low, the neural network will learn very slowly; if it’s set too high, we won’t reach the minimum of the loss. Using the chain rule and the partial derivatives of the loss function with respect to W and b to calculate dW and db, the sizes of these are equal to W and b, respectively. The second image below shows the order of operations in the neural network. We can clearly see how forward propagation and backpropagation work together to optimize the loss function.ConclusionI hope this article helps you understand some of the mathematical principles behind neural networks, and mastering the mathematical fundamentals will greatly assist you in using neural networks. Although this article lists some important content, it is just the tip of the iceberg. I strongly recommend that you try to write a small neural network using some simple frameworks without relying on very advanced frameworks; this will deepen your understanding of machine learning.
