Introduction

This article will introduce the detailed steps and code demonstration for implementing circular text recognition using OpenCV + OCR. (Source: WeChat Official Account: OpenCV and AI Deep Learning)

Background Introduction

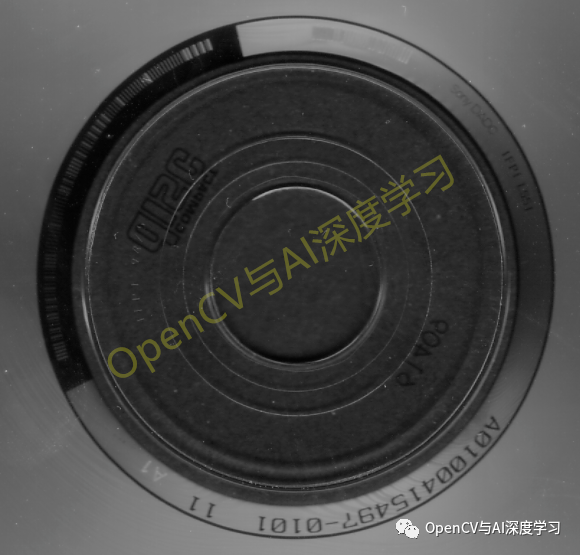

In optical character recognition (OCR) scenarios, there are many special cases, such as noise, dirt, tilt, deformation, etc., that can affect recognition. Circular text is one of them; we usually cannot recognize them directly but first convert the text to a horizontal direction before recognition. As shown in the figure below:

If we recognize directly, it is easy to fail. So what should we do? Below, I will introduce the recognition steps for the text in the above image in detail, which can also be seen as the general steps for circular text recognition.

Detailed Implementation Steps

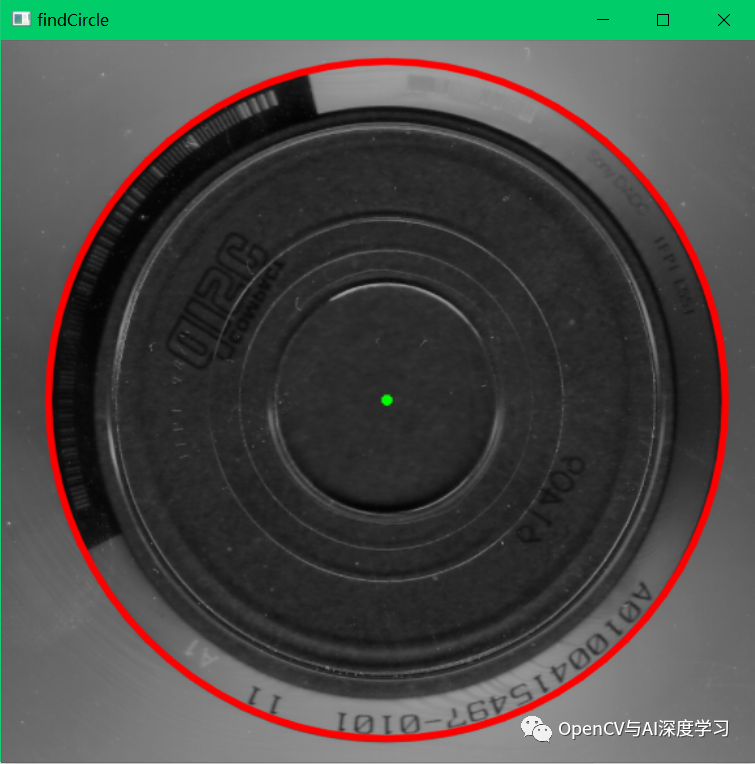

[1] Find the circular contours in the image. Circular positioning can be achieved using general Blob analysis or Hough Circle Transform. Here, since the circles are relatively regular and clear, we can directly use Hough Circle Transform. The code and detection results are as follows:

gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)gray = cv2.medianBlur(gray,3)circles = cv2.HoughCircles(gray,cv2.HOUGH_GRADIENT,1,100,
         param1=200,param2=30,minRadius=200,maxRadius=300)
isNG = Falseif circles is None:  print("Failed to find the circle!")  else:  circles = np.uint16(np.around(circles))  a, b, c = circles.shape  print (circles.shape)  for i in range(b):    cv2.circle(img_copy, (circles[0][i][0], circles[0][i][1]), circles[0][i][2], (0, 0, 255), 3, cv2.LINE_AA)    cv2.circle(img_copy, (circles[0][i][0], circles[0][i][1]), 2, (0, 255, 0), 3, cv2.LINE_AA) # draw center of circle  cv2.imshow("findCircle", img_copy)

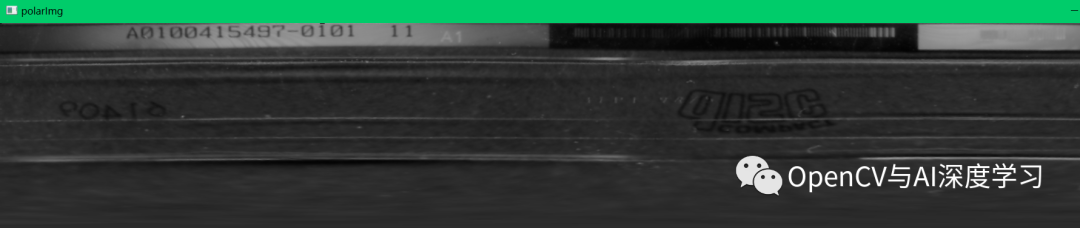

[2] Perform polar coordinate transformation based on the found circle to convert the text to a horizontal direction.

x = circles[0][i][0] - circles[0][i][2]y = circles[0][i][1] - circles[0][i][2]w = h = 2 * circles[0][i][2]center = (circles[0][i][0], circles[0][i][1])radius = circles[0][i][2]C = 2 * math.pi * radiusprint(C,radius)
ROI = img[y:y+h,x:x+w].copy()cv2.imshow('ROI',ROI)trans_center = (center[0]-x, center[1]-y)polarImg = cv2.warpPolar(ROI,(int(radius),int(C)),trans_center,radius,cv2.INTER_LINEAR + cv2.WARP_POLAR_LINEAR)polarImg = cv2.flip(polarImg,1) # MirrorpolarImg = cv2.transpose(polarImg)# Transposecv2.imshow('polarImg',polarImg)cv2.imwrite('polarImg.png',polarImg)

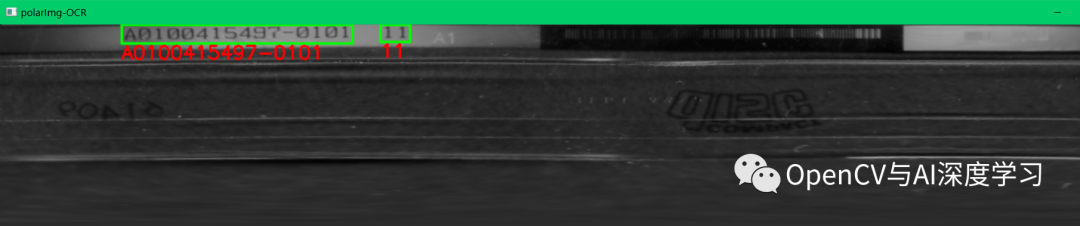

[3] Text recognition. You can use either EasyOCR or PaddleOCR; here we use EasyOCR.

result = reader.readtext(polarImg)print(result)if len(result) > 0:  for i in range(0,len(result)):    print(result[i][1])    if(result[i][2] < 0.4):      continue    for j in range(4):      if j > 0:        cv2.line(polarImg,(tuple(result[i][0][j-1])),(tuple(result[i][0][j])),(0,255,0),2,cv2.LINE_AA)    cv2.line(polarImg,(tuple(result[i][0][0])),(tuple(result[i][0][3])),(0,255,0),2,cv2.LINE_AA)      strText = result[i][1].replace(' ','')    cv2.putText(polarImg,strText,(result[i][0][3][0],result[i][0][3][1]+20),0,0.8,(0,0,255),2)
  cv2.imshow('polarImg-OCR',polarImg)

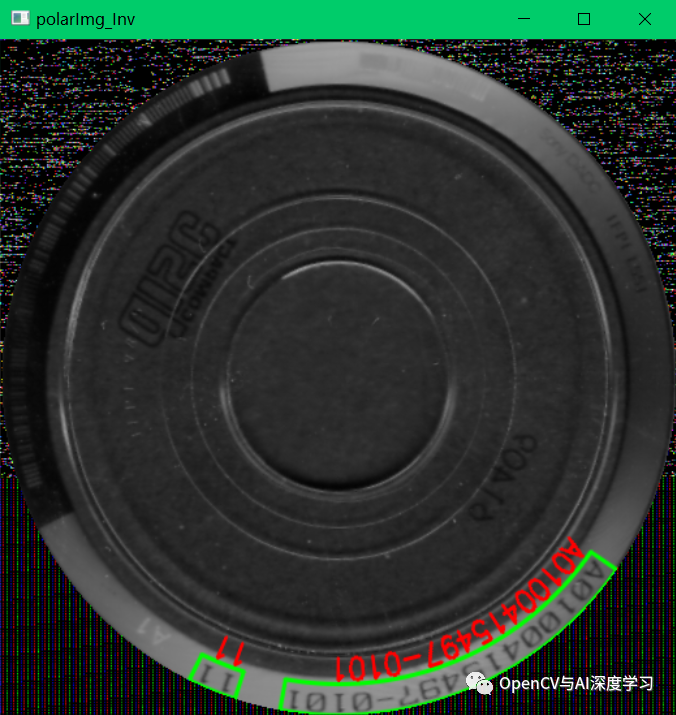

[4] Inverse polar coordinate transformation to restore the image containing the recognition results to a circular shape.

polarImg = cv2.flip(polarImg,0) # MirrorpolarImg = cv2.transpose(polarImg)# TransposepolarImg_Inv = cv2.warpPolar(polarImg,(w,h),trans_center,radius,cv2.INTER_LINEAR +
                       cv2.WARP_POLAR_LINEAR + cv2.WARP_INVERSE_MAP)cv2.imshow('polarImg_Inv',polarImg_Inv)

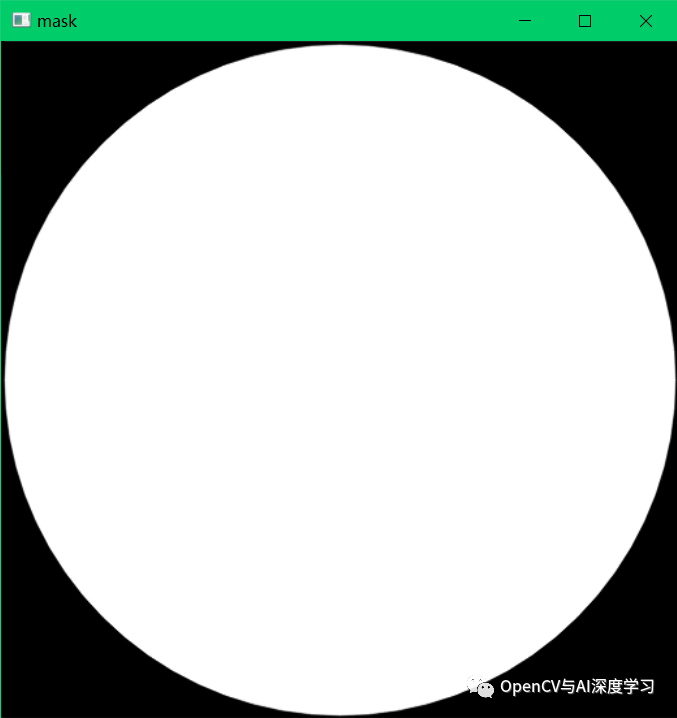

[5] Create a circular mask image to perform copyTo operation, ensuring the outside of the circle matches the original image.

mask = np.zeros((h,w,1),np.uint8)  cv2.circle(mask,trans_center,radius-3,(255,255,255),-1, cv2.LINE_AA)  cv2.imshow('mask', mask)  ROI = img[y:y+h,x:x+w]  for i in range(0,ROI.shape[0]):    for j in range(0, ROI.shape[1]):      if mask[i,j] > 0:        ROI[i,j] = polarImg_Inv[i,j]  cv2.imshow('result', img)  cv2.waitKey(0)
