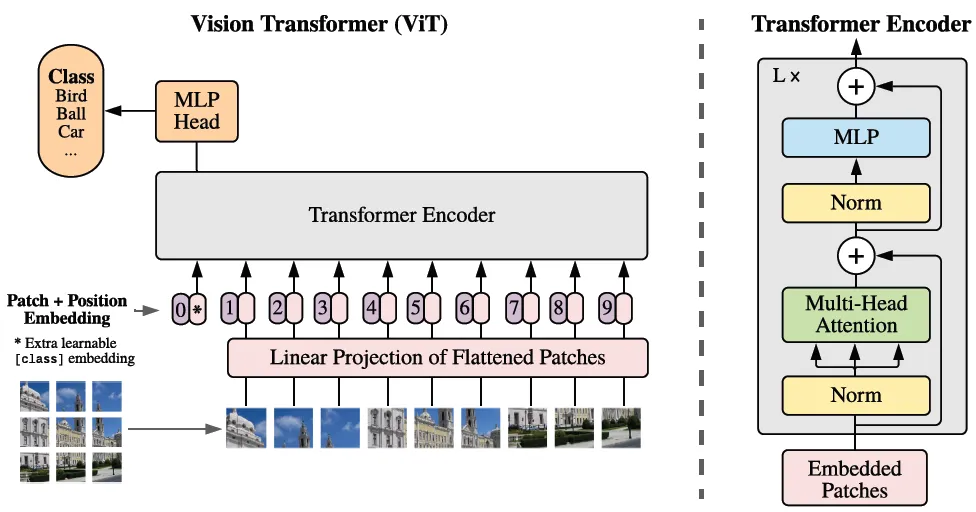

Detailed Explanation of ViT Model and PyTorch Implementation

class PatchEmbeddings(nn.Module):
    """
    Convert the image into patches and then project them into a vector space.
    """

    def __init__(self, config):
        super().__init__()
        self.image_size = config["image_size"]
        self.patch_size = config["patch_size"]
        self.num_channels = config["num_channels"]
        self.hidden_size = config["hidden_size"]
        # Calculate the number of patches from the image size and patch size
        self.num_patches = (self.image_size // self.patch_size) ** 2
        # Create a projection layer to convert the image into patches
        # The layer projects each patch into a vector of size hidden_size
        self.projection = nn.Conv2d(self.num_channels, self.hidden_size, kernel_size=self.patch_size, stride=self.patch_size)

    def forward(self, x):
        # (batch_size, num_channels, image_size, image_size) -> (batch_size, num_patches, hidden_size)
        x = self.projection(x)
        x = x.flatten(2).transpose(1, 2)
        return x

class Embeddings(nn.Module):
    def __init__(self, config):
        super().__init__()
        self.config = config
        self.patch_embeddings = PatchEmbeddings(config)
        # Create a learnable [CLS] token
        # Similar to BERT, the [CLS] token is added to the beginning of the input sequence
        # and is used to classify the entire sequence
        self.cls_token = nn.Parameter(torch.randn(1, 1, config["hidden_size"]))
        # Create position embeddings for the [CLS] token and the patch embeddings
        # Add 1 to the sequence length for the [CLS] token
        self.position_embeddings =
            nn.Parameter(torch.randn(1, self.patch_embeddings.num_patches + 1, config["hidden_size"]))
        self.dropout = nn.Dropout(config["hidden_dropout_prob"])

    def forward(self, x):
        x = self.patch_embeddings(x)
        batch_size, _, _ = x.size()
        # Expand the [CLS] token to the batch size
        # (1, 1, hidden_size) -> (batch_size, 1, hidden_size)
        cls_tokens = self.cls_token.expand(batch_size, -1, -1)
        # Concatenate the [CLS] token to the beginning of the input sequence
        # This results in a sequence length of (num_patches + 1)
        x = torch.cat((cls_tokens, x), dim=1)
        x = x + self.position_embeddings
        x = self.dropout(x)
        return x

class AttentionHead(nn.Module):
    """
    A single attention head.
    This module is used in the MultiHeadAttention module.
    """
    def __init__(self, hidden_size, attention_head_size, dropout, bias=True):
        super().__init__()
        self.hidden_size = hidden_size
        self.attention_head_size = attention_head_size
        # Create the query, key, and value projection layers
        self.query = nn.Linear(hidden_size, attention_head_size, bias=bias)
        self.key = nn.Linear(hidden_size, attention_head_size, bias=bias)
        self.value = nn.Linear(hidden_size, attention_head_size, bias=bias)

        self.dropout = nn.Dropout(dropout)

    def forward(self, x):
        # Project the input into query, key, and value
        # The same input is used to generate the query, key, and value,
        # so it's usually called self-attention.
        # (batch_size, sequence_length, hidden_size) -> (batch_size, sequence_length, attention_head_size)
        query = self.query(x)
        key = self.key(x)
        value = self.value(x)
        # Calculate the attention scores
        # softmax(Q*K.T/sqrt(head_size))*V
        attention_scores = torch.matmul(query, key.transpose(-1, -2))
        attention_scores = attention_scores / math.sqrt(self.attention_head_size)
        attention_probs = nn.functional.softmax(attention_scores, dim=-1)
        attention_probs = self.dropout(attention_probs)
        # Calculate the attention output
        attention_output = torch.matmul(attention_probs, value)
        return (attention_output, attention_probs)

class MultiHeadAttention(nn.Module):    """    Multi-head attention module.    This module is used in the TransformerEncoder module.    """
    def __init__(self, config):        super().__init__()        self.hidden_size = config["hidden_size"]        self.num_attention_heads = config["num_attention_heads"]        # The attention head size is the hidden size divided by the number of attention heads        self.attention_head_size = self.hidden_size // self.num_attention_heads        self.all_head_size = self.num_attention_heads * self.attention_head_size        # Whether or not to use bias in the query, key, and value projection layers        self.qkv_bias = config["qkv_bias"]        # Create a list of attention heads        self.heads = nn.ModuleList([])        for _ in range(self.num_attention_heads):            head = AttentionHead(                self.hidden_size,                self.attention_head_size,                config["attention_probs_dropout_prob"],                self.qkv_bias            )            self.heads.append(head)        # Create a linear layer to project the attention output back to the hidden size        # In most cases, all_head_size and hidden_size are the same        self.output_projection = nn.Linear(self.all_head_size, self.hidden_size)        self.output_dropout = nn.Dropout(config["hidden_dropout_prob"])

    def forward(self, x, output_attentions=False):        # Calculate the attention output for each attention head        attention_outputs = [head(x) for head in self.heads]        # Concatenate the attention outputs from each attention head        attention_output = torch.cat([attention_output for attention_output, _ in attention_outputs], dim=-1)        # Project the concatenated attention output back to the hidden size        attention_output = self.output_projection(attention_output)        attention_output = self.output_dropout(attention_output)        # Return the attention output and the attention probabilities (optional)        if not output_attentions:            return (attention_output, None)        else:            attention_probs = torch.stack([attention_probs for _, attention_probs in attention_outputs], dim=1)            return (attention_output, attention_probs)

class MLP(nn.Module):    """    A multi-layer perceptron module.    """
    def __init__(self, config):        super().__init__()        self.dense_1 = nn.Linear(config["hidden_size"], config["intermediate_size"])        self.activation = NewGELUActivation()        self.dense_2 = nn.Linear(config["intermediate_size"], config["hidden_size"])        self.dropout = nn.Dropout(config["hidden_dropout_prob"])
    def forward(self, x):        x = self.dense_1(x)        x = self.activation(x)        x = self.dense_2(x)        x = self.dropout(x)        return x

class Block(nn.Module):    """    A single transformer block.    """
    def __init__(self, config):        super().__init__()        self.attention = MultiHeadAttention(config)        self.layernorm_1 = nn.LayerNorm(config["hidden_size"])        self.mlp = MLP(config)        self.layernorm_2 = nn.LayerNorm(config["hidden_size"])
    def forward(self, x, output_attentions=False):        # Self-attention        attention_output, attention_probs =
            self.attention(self.layernorm_1(x), output_attentions=output_attentions)        # Skip connection        x = x + attention_output        # Feed-forward network        mlp_output = self.mlp(self.layernorm_2(x))        # Skip connection        x = x + mlp_output        # Return the transformer block's output and the attention probabilities (optional)        if not output_attentions:            return (x, None)        else:            return (x, attention_probs)

class Encoder(nn.Module):    """    The transformer encoder module.    """
    def __init__(self, config):        super().__init__()        # Create a list of transformer blocks        self.blocks = nn.ModuleList([])        for _ in range(config["num_hidden_layers"]):            block = Block(config)            self.blocks.append(block)
    def forward(self, x, output_attentions=False):        # Calculate the transformer block's output for each block        all_attentions = []        for block in self.blocks:            x, attention_probs = block(x, output_attentions=output_attentions)            if output_attentions:                all_attentions.append(attention_probs)        # Return the encoder's output and the attention probabilities (optional)        if not output_attentions:            return (x, None)        else:            return (x, all_attentions)

class ViTForClassfication(nn.Module):    """    The ViT model for classification.    """
    def __init__(self, config):        super().__init__()        self.config = config        self.image_size = config["image_size"]        self.hidden_size = config["hidden_size"]        self.num_classes = config["num_classes"]        # Create the embedding module        self.embedding = Embeddings(config)        # Create the transformer encoder module        self.encoder = Encoder(config)        # Create a linear layer to project the encoder's output to the number of classes        self.classifier = nn.Linear(self.hidden_size, self.num_classes)        # Initialize the weights        self.apply(self._init_weights)
    def forward(self, x, output_attentions=False):        # Calculate the embedding output        embedding_output = self.embedding(x)        # Calculate the encoder's output        encoder_output, all_attentions = self.encoder(embedding_output, output_attentions=output_attentions)        # Calculate the logits, take the [CLS] token's output as features for classification        logits = self.classifier(encoder_output[:, 0])        # Return the logits and the attention probabilities (optional)        if not output_attentions:            return (logits, None)        else:            return (logits, all_attentions)

The code is actually organized and translated from GitHub (I believe it is very easy to understand, and anyone with a basic knowledge of PyTorch can comprehend and learn it). If interested, you can check it out here:

https://github.com/lukemelas/PyTorch-Pretrained-ViT/blob/master/pytorch_pretrained_vit/transformer.pyhttps://tintn.github.io/Implementing-Vision-Transformer-from-Scratch/
