This article will teach you how to write custom loss functions using wrapper functions and OOP in Python.

Tags: TensorFlow 2, Loss Function

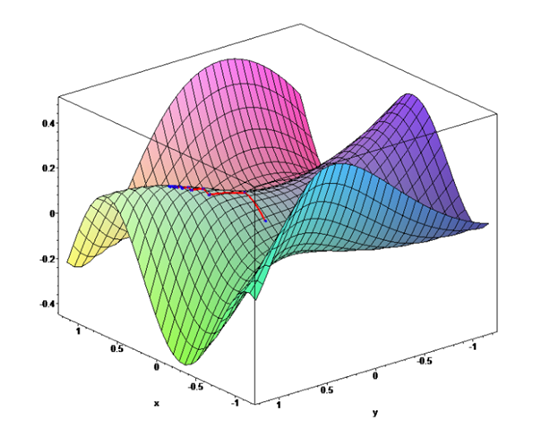

Figure 1: Gradient Descent Algorithm (Source: Public Domain, https://commons.wikimedia.org/w/index.php?curid=521422)

Neural networks use training data to map a set of inputs to a set of outputs, achieving this through some form of optimization algorithm, such as gradient descent, stochastic gradient descent, AdaGrad, AdaDelta, etc., with the latest algorithms including Adam, Nadam, or RMSProp. The “gradient” in gradient descent refers to the error gradient. After each iteration, the network compares its predicted output with the actual output and then calculates the “error”.

Typically, for neural networks, the goal is to minimize the error.The objective function that seeks to minimize the error is commonly referred to as the cost function or loss function, and the value calculated by the “loss function” is referred to as the “loss”. Typical loss functions used in various problems include:

Mean Squared Error;
Mean Squared Logarithmic Error;
Binary Crossentropy;
Categorical Crossentropy;
Sparse Categorical Crossentropy.

TensorFlow already includes the above loss functions, which can be called directly, as shown below:

1. Call the loss function as a string

model.compile(loss='binary_crossentropy', optimizer='adam', metrics=['accuracy'])

2. Call the loss function as an object

from tensorflow.keras.losses import mean_squared_error
model.compile(loss=mean_squared_error, optimizer='sgd')

The advantage of calling the loss function as an object is that parameters such as thresholds can be passed to the loss function.

from tensorflow.keras.losses import mean_squared_error
model.compile(loss=mean_squared_error(param=value), optimizer='sgd')

Creating Custom Loss Functions Using Existing Functions:

To create a loss function using existing functions, you first need to define the loss function, which will accept two parameters, y_true (true labels/outputs) and y_pred (predicted labels/outputs).

def loss_function(y_true, y_pred):
    ***some calculation***
    return loss

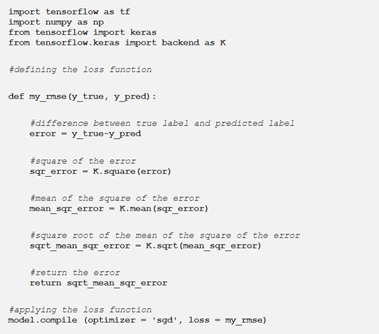

Creating a Mean Squared Error Loss Function (RMSE):

Define the loss function name – my_rmse. The goal is to return the mean squared error between the target (y_true) and the prediction (y_pred).

The formula for RMSE is:

Error: The difference between the true labels and predicted labels.
sqr_error: The square of the error.
mean_sqr_error: The mean of the squared errors.
sqrt_mean_sqr_error: The square root of the mean squared error (Root Mean Square Error).

Creating Huber Loss Function:

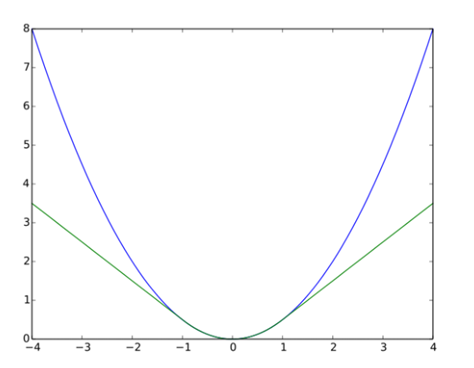

Figure 2: Huber Loss Function (Green) and Squared Error Loss Function (Blue) (Source: Qwertyus— Own work, CCBY-SA4.0, https://commons.wikimedia.org/w/index.php?curid=34836380)

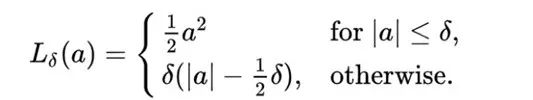

The calculation formula for Huber loss function:

Here, δ is the threshold, and a is the error (which will be calculated as the difference between the actual labels and predicted labels).

When |a| ≤ δ, loss = 1/2 * (a)²

When |a| > δ, loss = δ (|a| – (1/2) * δ)

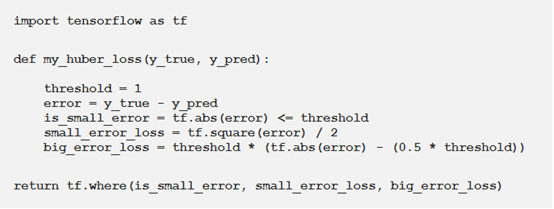

Source Code:

Detailed Explanation:

First, define a function – my_huber_loss, which requires two parameters: y_true and y_pred,

Set the threshold threshold = 1.

Calculate the error error a = y_true – y_pred. Next, check whether the absolute value of the error is less than or equal to the threshold, is_small_error returns a boolean (true or false).

When |a| ≤ δ, loss = 1/2 * (a)², calculate small_error_loss, which is the square of the error divided by 2. Otherwise, when |a| > δ, the loss equals δ (|a| – (1/2) * δ), calculate this value with big_error_loss.

Finally, in the return statement, first check whether is_small_error is true or false; if true, the function returns small_error_loss, otherwise it returns big_error_loss, using tf.where to implement.

You can use the following code to compile the model:

In the above code, set the threshold to 1.

If you need to adjust hyperparameters (threshold), and include a new threshold during compilation, you must use a wrapper function to encapsulate it, meaning that the loss function is wrapped into another external function. Here, we need to use a wrapper function because the loss function by default only accepts y_true and y_pred values, and cannot add any other parameters to the original loss function.

Using the Wrapped Huber Loss Function

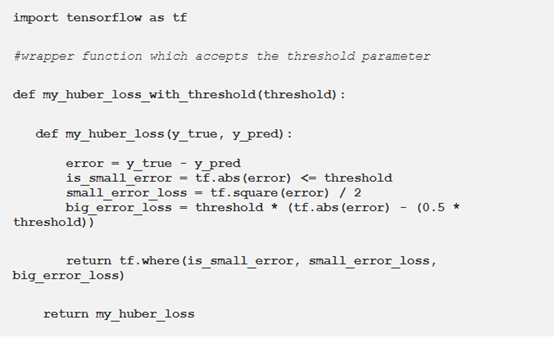

Source code for the wrapper function:

At this point, the threshold is not hard-coded and can be passed during model compilation.

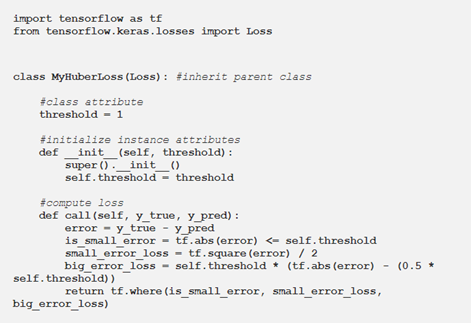

Implementing Huber Loss Function Using Classes (OOP)

Here, MyHuberLoss is the class name, which then inherits from the parent class “Loss” from tensorflow.keras.losses. MyHuberLoss inherits the Loss class and can then be used as a loss function.

__init__ initializes the objects in this class. The function is called when the class instance is created, and the init function returns the threshold, calling the function to get the y_true and y_pred parameters, declaring the threshold as a class variable, which can be assigned an initial value.

In the __init__ function, set the threshold to self.threshold. In the calling function, self.threshold references all threshold class variables. Use this loss function in model.compile:

Creating Contrastive Loss (for Siamese Networks):

Siamese networks can be used to compare whether two images are similar, and the loss function used by Siamese networks is contrastive loss.

In the equations above, Y_true is a tensor regarding image similarity details; if the images are similar, it is 1, and if the images are not similar, it is 0.

D is the tensor of the Euclidean distance between image pairs. The margin is a constant used to set the minimum distance that distinguishes images as similar or different. If Y_true=1, the first part of the equation is D², and the second part is 0, so when Y_true approaches 1, the weight of D² is heavier.

If Y_true=0, the first part of the equation becomes 0, and the second part yields some results, giving more weight to the maximum term and less weight to the D squared term, making the maximum term dominate in the loss calculation.

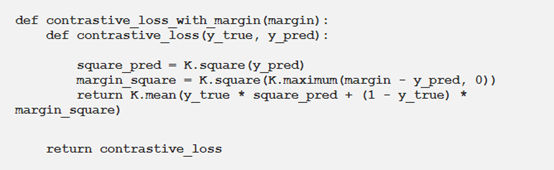

Implementing Contrastive Loss Function Using Wrapper Functions:

Conclusion

Loss functions not available in TensorFlow can be created using functions, wrapper functions, or similar classes.
