Important content delivered promptly.What is CNN? Is it the Cable News Network?
Every beginner with aspirations in AI will encounter the term CNN (Convolutional Neural Network) at the start.
However, every time they try to understand what CNN is and why it can intelligently recognize faces and distinguish sounds, they get confused and end up considering it a mystery:

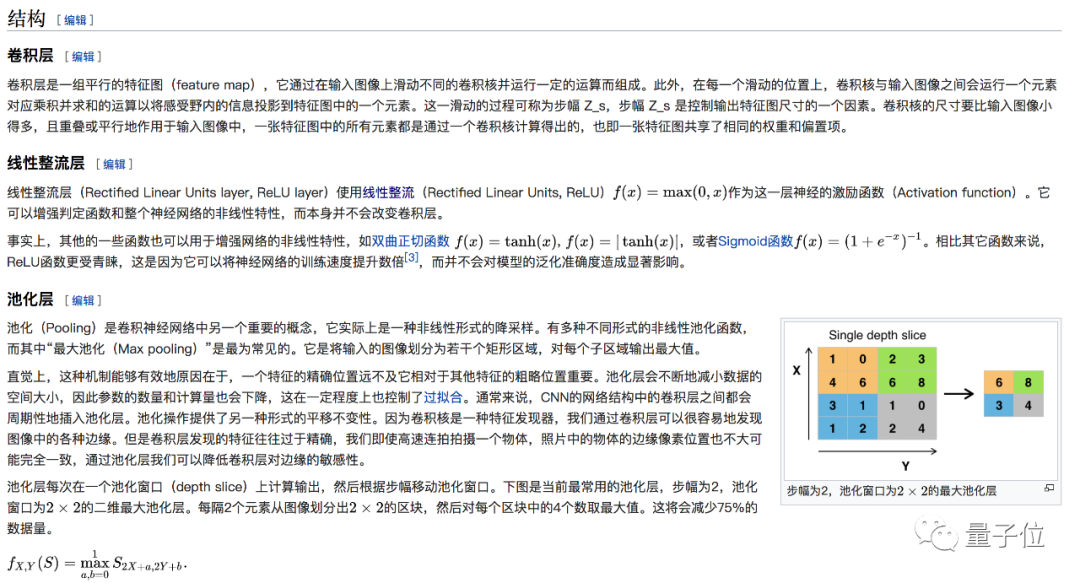

Well, someone has solved the problems that Wikipedia couldn’t.
This tool, called CNN Explainer, is an online interactive visualization tool that breaks down CNN and explains to beginners what CNN is and how it can recognize objects.

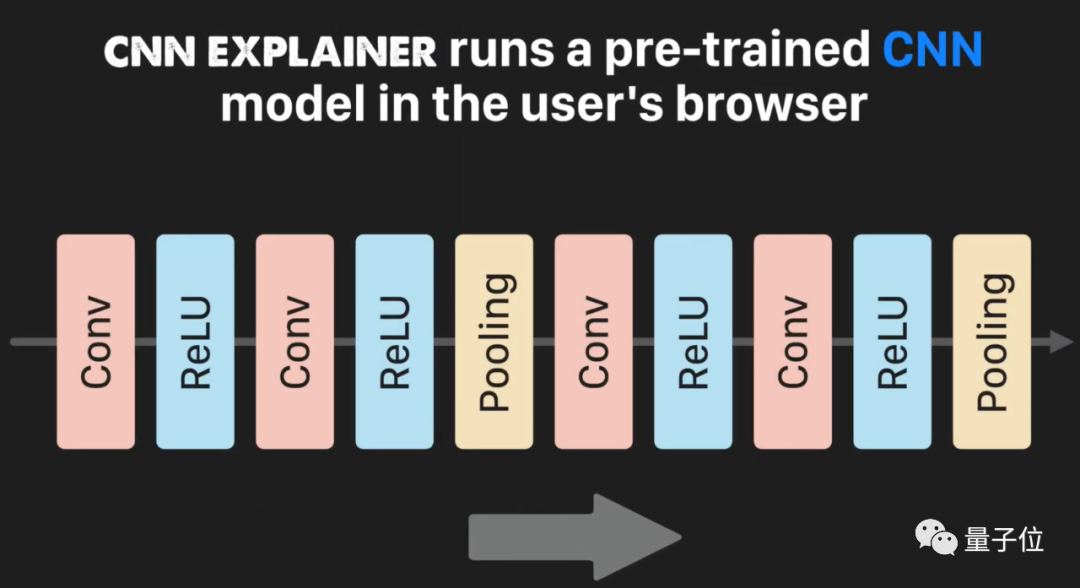

It uses TensorFlow.js to load a pre-trained model with 10 layers, essentially running a CNN model in your browser; you just need to open your computer to understand what CNN is all about.
Moreover, this web tool allows for interaction; by clicking on any grid—representing a “neuron” in CNN—you can see what its inputs are and how they change in detail.
You can even clearly see each convolution operation.
Understanding Convolution
The usage of this CNN Explainer is very simple: just click with your mouse.

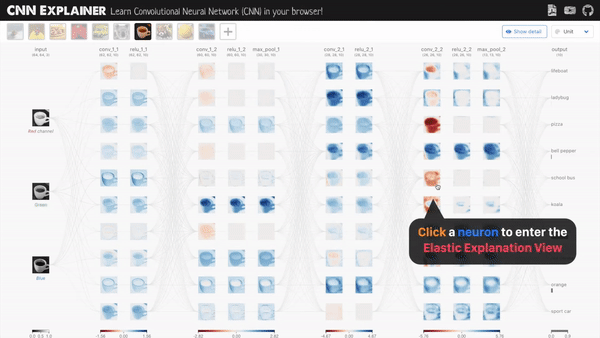

Clicking on a neuron enters an elastic explanation view, where you can see an animated simulation of the convolution kernel sliding process:

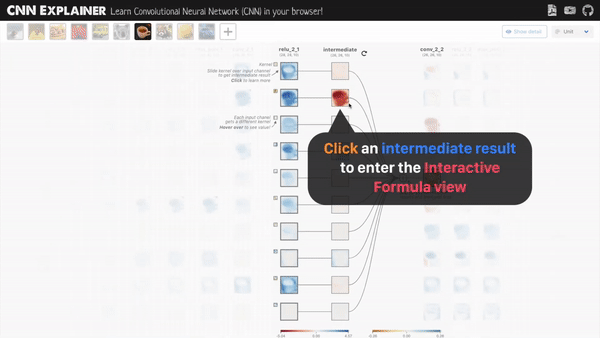

Clicking on a convolution process image allows you to see the more specific process:
You can see how the underlying convolution operation with a 3×3 kernel is transformed into a single number through calculations.
Understanding ReLU and Max Pooling Layers

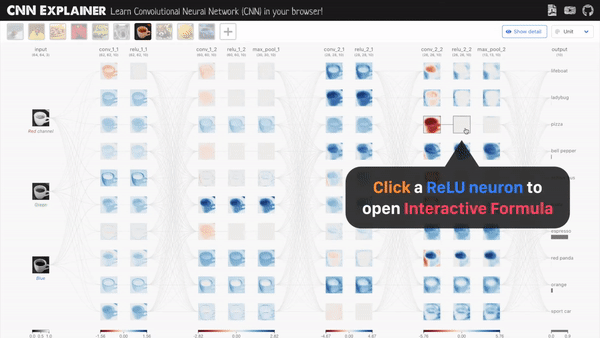

Clicking on a ReLU layer neuron reveals the specific process; the ReLU function works like this:
Clicking on a pooling neuron also shows how the max pooling layer works specifically:
Understanding CNN Output Predictions

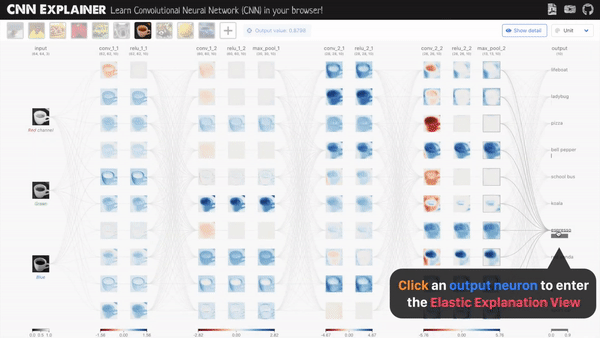

Clicking on the output neuron on the far right enters the elastic explanation view:
You can view details of the Softmax function:
Try Recognizing a ‘Raccoon’?
The CNN Explainer defaults to 10 images, and you can also add your custom images.
For example:
Stuffed bell pepper? Bell pepper pizza? Or what?

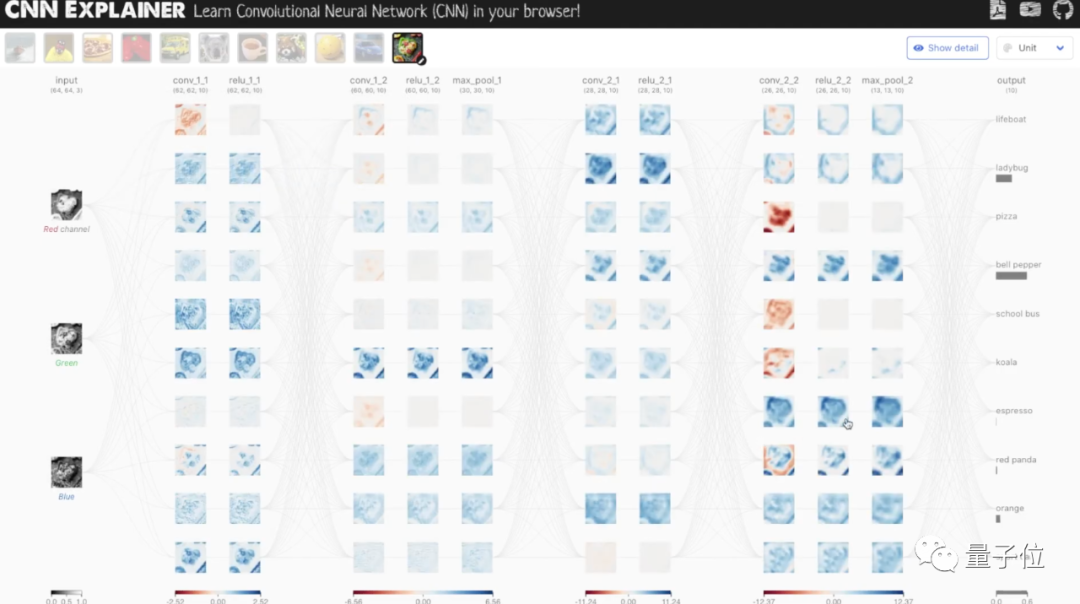

After copying the image link or uploading an image, it goes through 10 layers of processing and reaches a conclusion:
It is a bell pepper, but it could also be a bug.

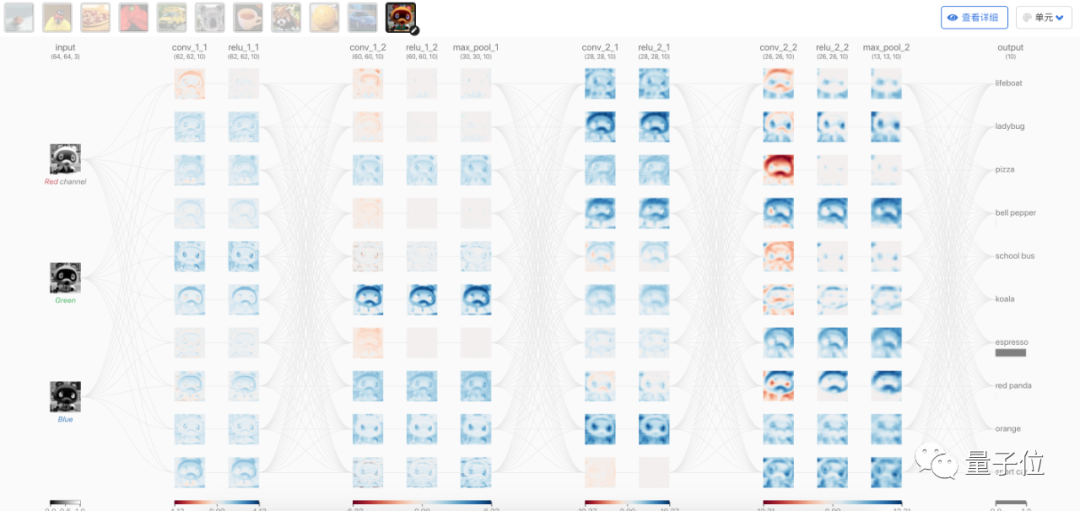

However, it can only be classified into one of the original 10 categories on the right; for example, putting a raccoon:
It will be identified as espresso.
Produced by a Chinese PhD from Georgia Tech
Finally, the author of this CNN Explainer is a Chinese guy, Zijie Wang from Georgia Tech, who just started his PhD in machine learning last year, having graduated from the University of Wisconsin-Madison with a GPA of 3.95/4.00.
He has also worked on other interesting data visualization projects, such as where the Chinese undergraduates at the University of Wisconsin-Madison come from:
Links
CNN Explainer: https://poloclub.github.io/cnn-explainer/
GitHub: https://github.com/poloclub/cnn-explainer
Paper: https://arxiv.org/abs/2004.15004
