In previous articles, we have introduced two types of image segmentation loss functions. Today, we will share commonly used multi-class image segmentation loss functions such as multi-class cross-entropy, weighted multi-class cross-entropy, multi-class Dice coefficient, multi-class Focal Loss, etc., and provide code to reproduce the above loss functions in TensorFlow.
The cross-entropy loss function compares the predicted value of each pixel with the target value, and then averages over all pixels.The formula is as follows, where p is the true class value and p’ is the predicted class probability value.
This function has the same weight for each class, so it is easily affected by class imbalance.
The reproduction code is as follows:
def categorical_crossentropy(Y_pred, Y_gt): """ Categorical crossentropy between an output and a target loss=-y*log(y') :param Y_pred: A tensor resulting from a softmax :param Y_gt: A tensor of the same shape as `output` :return:categorical_crossentropy loss """ epsilon = 1.e-5 # scale preds so that the class probas of each sample sum to 1 output = Y_pred / tf.reduce_sum(Y_pred, axis=- 1, keep_dims=True) # manual computation of crossentropy output = tf.clip_by_value(output, epsilon, 1. - epsilon) loss = -Y_gt * tf.log(output) loss = tf.reduce_sum(loss, axis=(1, 2, 3)) loss = tf.reduce_mean(loss, axis=0) loss = tf.reduce_mean(loss) return loss
2. Weighted Cross Entropy

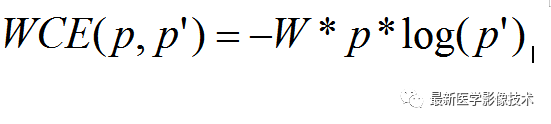

The weighted cross-entropy loss function adds a weight factor to each class of the cross-entropy loss function, which can effectively solve the problem of class imbalance.The formula is as follows, where p is the true class value, p’ is the predicted class probability value, and W is a one-dimensional vector that is equal in size to the number of classes.
The reproduction code is as follows:
def weighted_categorical_crossentropy(Y_pred, Y_gt, weights): """ weighted_categorical_crossentropy between an output and a target loss=-weight*y*log(y') :param Y_pred:A tensor resulting from a softmax :param Y_gt:A tensor of the same shape as `output` :param weights:numpy array of shape (C,) where C is the number of classes :return:categorical_crossentropy loss Usage: weights = np.array([0.5,2,10]) # Class one at 0.5, class 2 twice the normal weights, class 3 10x. """ weights = np.array(weights) epsilon = 1.e-5 # scale preds so that the class probas of each sample sum to 1 output = Y_pred / tf.reduce_sum(Y_pred, axis=- 1, keep_dims=True) # manual computation of crossentropy output = tf.clip_by_value(output, epsilon, 1. - epsilon) loss = - Y_gt * tf.log(output) loss = tf.reduce_sum(loss, axis=(1, 2, 3)) loss = tf.reduce_mean(loss, axis=0) loss = tf.reduce_mean(weights * loss) return loss

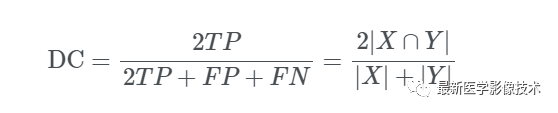

Dice loss is used in the V-net model, where the regions of interest in the anatomy generally occupy relatively small areas, thus increasing the weight of the foreground region can reduce the impact of class imbalance.The formula is as follows, where TP, FP, FN are the numbers of true positives, false positives, and false negatives, respectively.
The reproduction code is as follows:
def categorical_dice(Y_pred, Y_gt, weight_loss): """ multi label dice loss with weighted WDL=1-2*(sum(w*sum(r&p))/sum((w*sum(r+p)))),w=array of shape (C,) :param Y_pred: [None, self.image_depth, self.image_height, self.image_width, self.numclass],Y_pred is softmax result :param Y_gt:[None, self.image_depth, self.image_height, self.image_width, self.numclass],Y_gt is one hot result :param weight_loss: numpy array of shape (C,) where C is the number of classes :return: """ weight_loss = np.array(weight_loss) smooth = 1.e-5 smooth_tf = tf.constant(smooth, tf.float32) Y_pred = tf.cast(Y_pred, tf.float32) Y_gt = tf.cast(Y_gt, tf.float32) # Compute gen dice coef: numerator = Y_gt * Y_pred numerator = tf.reduce_sum(numerator, axis=(1, 2, 3)) denominator = Y_gt + Y_pred denominator = tf.reduce_sum(denominator, axis=(1, 2, 3)) gen_dice_coef = tf.reduce_mean(2. * (numerator + smooth_tf) / (denominator + smooth_tf), axis=0) loss = -tf.reduce_mean(weight_loss * gen_dice_coef) return loss

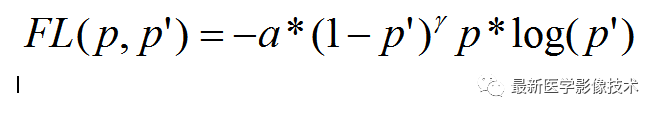

Focal loss is an improvement of the Cross Entropy function, which reduces the loss weight of easy samples, thus allowing the network to focus more on the loss of hard samples.The formula is as follows, where p is the true class value, p’ is the predicted class probability value, a is the class weight value, and r is the difficulty factor of sample classification.
The reproduction code is as follows:
def categorical_focal_loss(Y_pred, Y_gt, gamma, alpha): """ Categorical focal_loss between an output and a target :param Y_pred: A tensor of the same shape as `y_pred` :param Y_gt: A tensor resulting from a softmax(-1,z,h,w,numclass) :param alpha: Sample category weight,which is shape (C,) where C is the number of classes :param gamma: Difficult sample weight :return: """ weight_loss = np.array(alpha) epsilon = 1.e-5 # Scale predictions so that the class probas of each sample sum to 1 output = Y_pred / tf.reduce_sum(Y_pred, axis=- 1, keepdims=True) # Clip the prediction value to prevent NaN's and Inf's output = tf.clip_by_value(output, epsilon, 1. - epsilon) # Calculate Cross Entropy cross_entropy = -Y_gt * tf.log(output) # Calculate Focal Loss loss = tf.pow(1 - output, gamma) * cross_entropy loss = tf.reduce_sum(loss, axis=(1, 2, 3)) loss = tf.reduce_mean(loss, axis=0) loss = tf.reduce_mean(weight_loss * loss) return loss
5. Cross Entropy + Dice Loss
Some articles combine different loss functions to train networks. Here, we reproduce the function implementation of Cross Entropy + Dice loss, as shown in the following code:
def categorical_dicePcrossentroy(Y_pred, Y_gt, weight, lamda=0.5): """ hybrid loss function from dice loss and crossentroy loss=Ldice+lamda*Lfocalloss :param Y_pred:A tensor resulting from a softmax(-1,z,h,w,numclass) :param Y_gt: A tensor of the same shape as `y_pred` :param gamma:Difficult sample weight :param alpha:Sample category weight,which is shape (C,) where C is the number of classes :param lamda:trade-off between dice loss and focal loss,can set 0.1,0.5,1 :return:diceplusfocalloss """ weight_loss = np.array(weight) smooth = 1.e-5 smooth_tf = tf.constant(smooth, tf.float32) Y_pred = tf.cast(Y_pred, tf.float32) Y_gt = tf.cast(Y_gt, tf.float32) # Compute gen dice coef: numerator = Y_gt * Y_pred numerator = tf.reduce_sum(numerator, axis=(1, 2, 3)) denominator = Y_gt + Y_pred denominator = tf.reduce_sum(denominator, axis=(1, 2, 3)) gen_dice_coef = tf.reduce_sum(2. * (numerator + smooth_tf) / (denominator + smooth_tf), axis=0) loss1 = tf.reduce_mean(weight_loss * gen_dice_coef) epsilon = 1.e-5 # scale preds so that the class probas of each sample sum to 1 output = Y_pred / tf.reduce_sum(Y_pred, axis=- 1, keep_dims=True) # manual computation of crossentropy output = tf.clip_by_value(output, epsilon, 1. - epsilon) loss = -Y_gt * tf.log(output) loss = tf.reduce_mean(loss, axis=(1, 2, 3)) loss = tf.reduce_mean(loss, axis=0) loss2 = tf.reduce_mean(weight_loss * loss) total_loss = (1 - lamda) * (1 - loss1) + lamda * loss2 return total_loss
6. Cross Entropy + Focal Loss
The paper “AnatomyNet: Deep Learning for Fast and Fully Automated Whole-volume Segmentation of Head and Neck Anatomy” published by Tencent Medical AI Laboratory proposed using Dice loss + Focal loss to address the segmentation problem of small organs.The reproduction code is as follows:
def categorical_dicePfocalloss(Y_pred, Y_gt, alpha, lamda=0.5, gamma=2.): """ hybrid loss function from dice loss and focalloss loss=Ldice+lamda*Lfocalloss :param Y_pred:A tensor resulting from a softmax(-1,z,h,w,numclass) :param Y_gt: A tensor of the same shape as `y_pred` :param gamma:Difficult sample weight :param alpha:Sample category weight,which is shape (C,) where C is the number of classes :param lamda:trade-off between dice loss and focal loss,can set 0.1,0.5,1 :return:dicePfocalloss """ weight_loss = np.array(alpha) smooth = 1.e-5 smooth_tf = tf.constant(smooth, tf.float32) Y_pred = tf.cast(Y_pred, tf.float32) Y_gt = tf.cast(Y_gt, tf.float32) # Compute gen dice coef: numerator = Y_gt * Y_pred numerator = tf.reduce_sum(numerator, axis=(1, 2, 3)) denominator = Y_gt + Y_pred denominator = tf.reduce_sum(denominator, axis=(1, 2, 3)) gen_dice_coef = tf.reduce_sum(2. * (numerator + smooth_tf) / (denominator + smooth_tf), axis=0) loss1 = tf.reduce_mean(weight_loss * gen_dice_coef) epsilon = 1.e-5 # Scale predictions so that the class probas of each sample sum to 1 output = Y_pred / tf.reduce_sum(Y_pred, axis=- 1, keepdims=True) # Clip the prediction value to prevent NaN's and Inf's output = tf.clip_by_value(output, epsilon, 1. - epsilon) # Calculate Cross Entropy cross_entropy = -Y_gt * tf.log(output) # Calculate Focal Loss loss = tf.pow(1 - output, gamma) * cross_entropy loss = tf.reduce_mean(loss, axis=(1, 2, 3)) loss = tf.reduce_mean(loss, axis=0) loss2 = tf.reduce_mean(weight_loss * loss) total_loss = (1 - lamda) * (1 - loss1) + lamda * loss2 return total_loss
For better learning, I have shared the entire project code on GitHub:
https://github.com/junqiangchen/Image-Segmentation-Loss-Functions
If you think this project is good, I hope you can give it a Star and Fork it, so that more people can learn.If you encounter any problems, feel free to leave a message, and I will try my best to answer.
