Understanding Forward and Backward Propagation in Neural Networks

Click the blue text to follow us for more knowledge sharing.

Forward Propagation

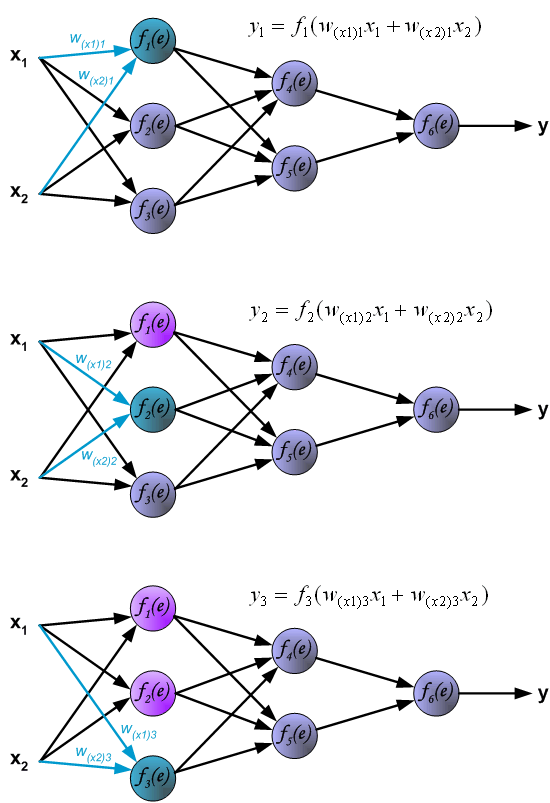

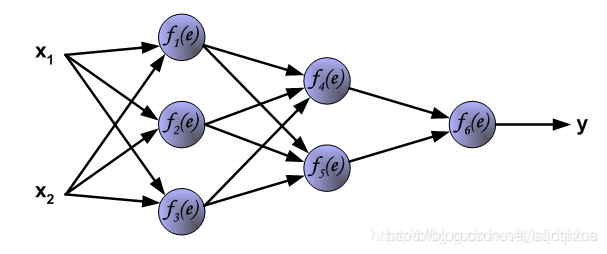

To explain the forward propagation of neural networks, we will use a simple fully connected three-layer neural network as shown in the figure below:

The neural network consists of layers of neurons (one column is considered a layer of the neural network). In forward propagation, each neuron in each layer is connected to all neurons in the previous layer or to the input data. For example, in the figure, f1(e) is connected to x1 and x2. Therefore, during computation, the output of each neuron = the sum of the functions of the previous layer before applying the activation function. For instance, the output y1 of f1(e) is calculated as y1 = (w(x1)x1 + w(x2)x2)

Where w is the weight, and f(e) represents the activation function; bias is not included in this example.

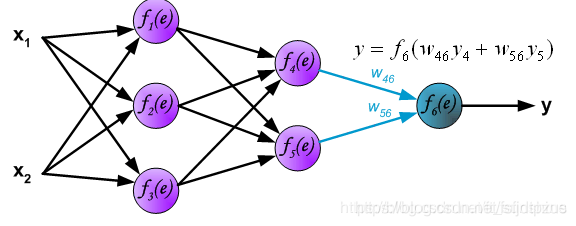

Then, f1, f2, and f3 are fully connected as inputs to the neurons in the next layer, and f4, f5 as inputs to the final layer of neurons, ultimately producing the output y value.

Backward Propagation Principle

The Backpropagation algorithm (BP algorithm) is a learning algorithm suitable for multi-layer neural networks. The learning process of the BP algorithm consists of the forward propagation process and the backward propagation process.

In the forward propagation process, as mentioned earlier, if the predicted value y does not match the actual value, the square sum of the output and the expected error is taken as the loss function.

The loss function from the forward propagation is then passed into the backward propagation process, where the partial derivatives of the loss function with respect to each neuron’s weights and biases are calculated layer by layer, serving as the gradient of the objective function concerning the weights and biases. Based on this computed gradient, the weights w and biases b are modified, completing the network’s learning during the weight modification process. The network learning ends when the error reaches the desired value.

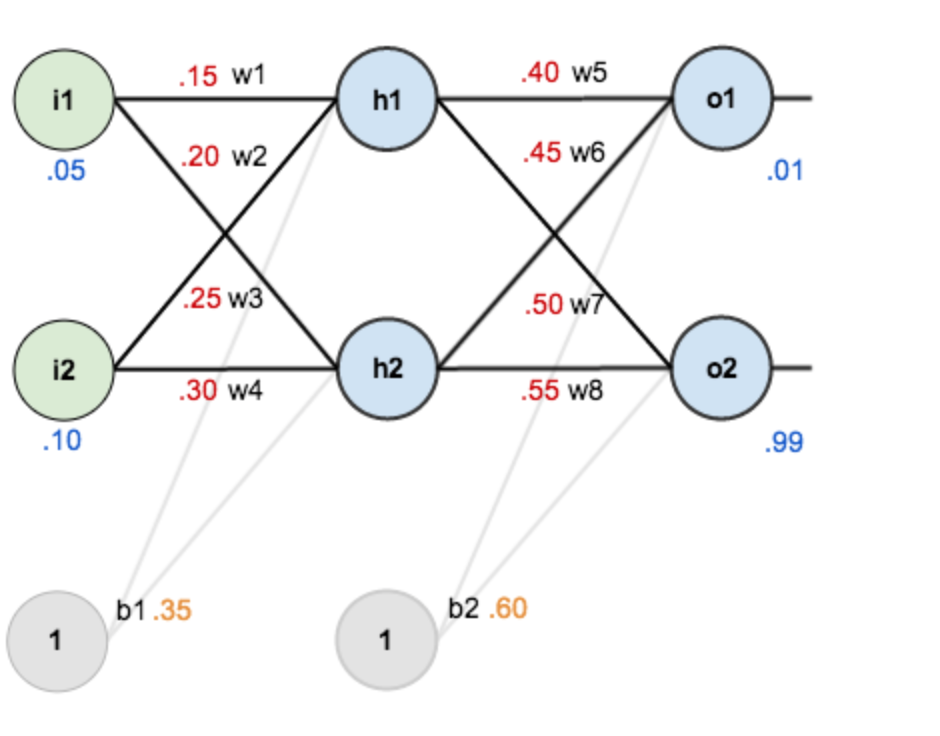

Assuming you have the following network layer: the first layer is the input layer with two neurons i1 and i2, and bias b1; the second layer is the hidden layer with two neurons h1 and h2 and bias b2; the third layer is the output layer o1 and o2, with weights wi marked on each line connecting the layers, and we assume the activation function is the sigmoid function. Now we assign initial values:

Given input data, weights, biases, and activation functions, according to the steps of forward propagation, the output value is [0.75136079, 0.772928465], which is still far from the actual values [0.01, 0.99]. Now we perform backward propagation on the error, updating the weights and biases and recalculating the output.

Backward Propagation Steps

Taking the update of weights as an example:

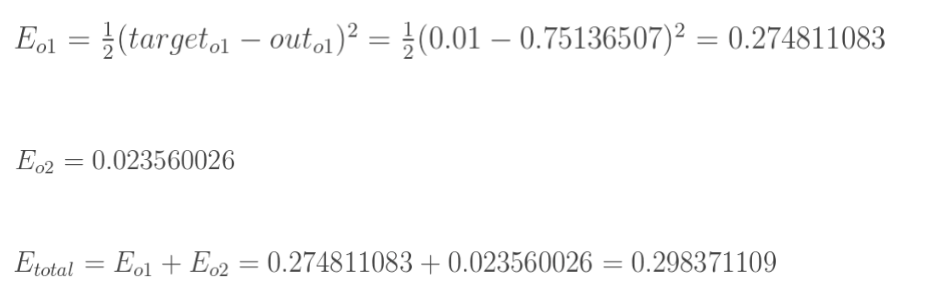

Calculate Total Error

Weight Update from Hidden Layer to Output Layer:

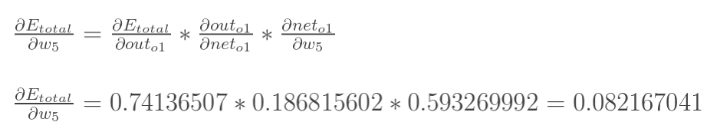

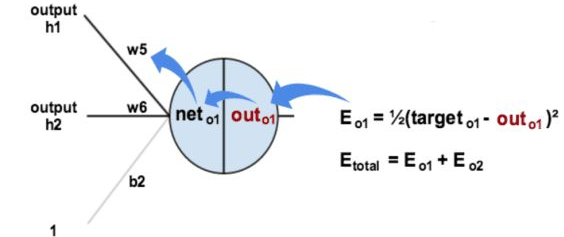

Taking weight parameter w5 as an example, if we want to know how much influence w5 has on the overall error, we can use the overall error to take the partial derivative with respect to w5: (Chain Rule)

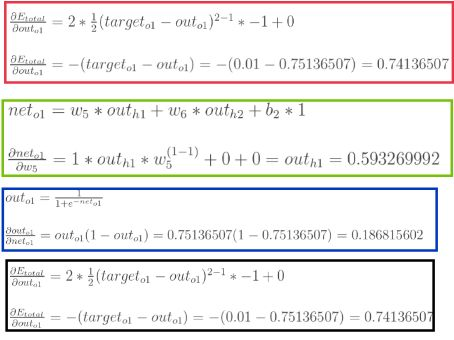

Substituting data:

We can obtain:

Finally, we update the value of w5:

(where n is the learning rate, controlling the step size for weight updates, here we take 0.5)

Similarly, we can update w6, w7, w8:

Weight Update from Hidden Layer to Hidden Layer

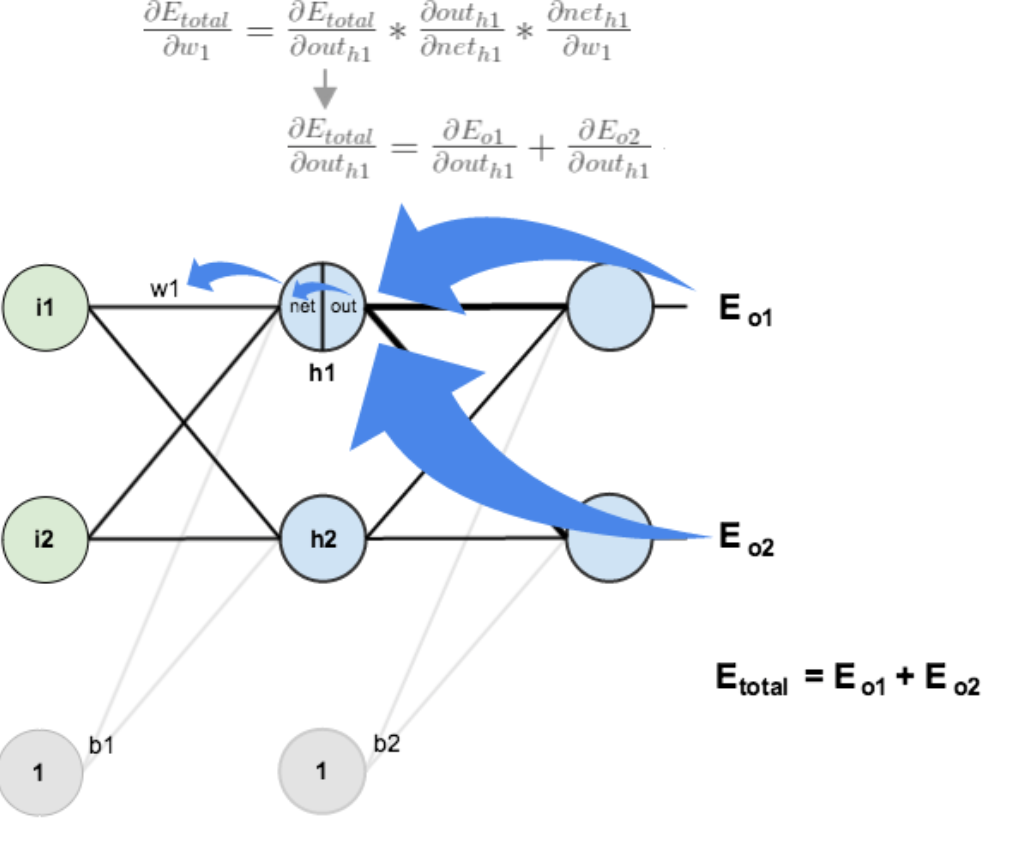

The method is actually similar to what was mentioned above, but one thing needs to change. When calculating the total error’s partial derivative with respect to w5, it was from out(o1)—->net(o1)—->w5, but for the weight update between hidden layers, it is out(h1)—->net(h1)—->w1, and out(h1) will receive errors from E(o1) and E(o2) from both places, so both need to be calculated.

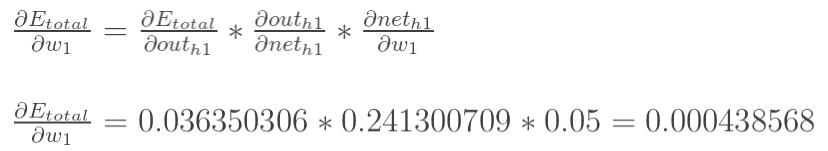

Similar to the above calculation process, substituting data gives:

Updating the weight of w1:

Similarly, we can obtain the weights of w2, w3, and w4:

Thus, the error backpropagation method is completed, and finally, we recalculate the updated weights, iterating continuously until the total error is reduced to our expected range.
