Quickly Generate Dynamic Web Apps for Machine Learning Projects

1. Streamlit

In one sentence, Streamlit is a library that allows you to write web apps in Python, making it easy to dynamically showcase your machine learning projects.

Advantages

• You don’t need to know HTML, CSS, JS, etc.; you can write web apps using pure Python.
• Includes commonly used web components: text boxes, buttons, radio buttons, checkboxes, dropdowns, multimedia (images, videos), and file uploads.

Application Scenarios

• You can dynamically explore data.
• You can easily showcase your machine learning results dynamically (can be compared with Jupyter Notebook).

https://github.com/streamlit/streamlit

2. Installation

pip install streamlit

streamlit hello

# Start web app
# streamlit run [filename]
streamlit run app.py

# You can now view your Streamlit app in your browser.
# Local URL: http://localhost:8501

3. Introduction to Basic Components

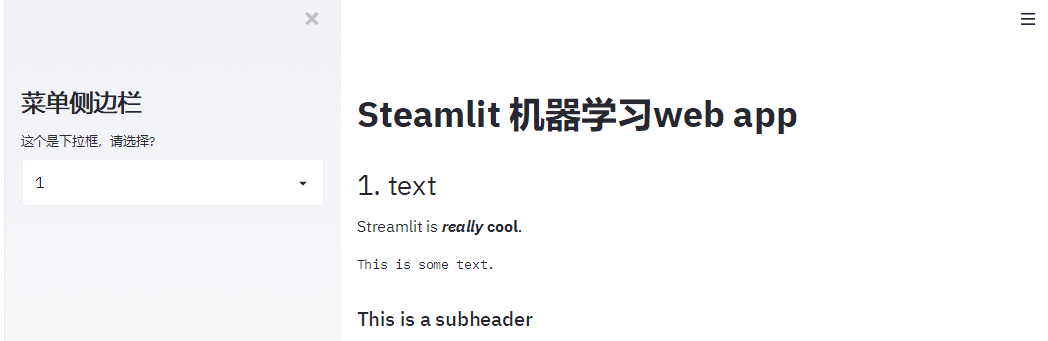

3.1 Layout

Typically, web layouts use layout CSS, such as the 12-column grid system in Bootstrap; Streamlit has at most two columns, usually one. You can add a sidebar using st.sidebar, which can often serve as a menu for selecting control operations. In a vertical structure, Streamlit lays out in order from top to bottom according to the code sequence.

import streamlit as st
import numpy as np
import time
import pandas as pd
import datetime
# Sidebar
st.sidebar.title('Menu Sidebar')
add_selectbox = st.sidebar.selectbox(
    "This is a dropdown, please choose?",
    ("1", "Home 2", "Mobile 2")
)
# Main Column
st.title('Steamlit Machine Learning Web App')

3.2 Text

Streamlit provides many text display commands and supports markdown syntax.

st.header('1. Text Display')
st.markdown('Streamlit is **_really_ cool**.')
st.text('This is some text.')
st.subheader('This is a subheader')
st.write("st.write can write many things!")
st.warning('This is a warning')

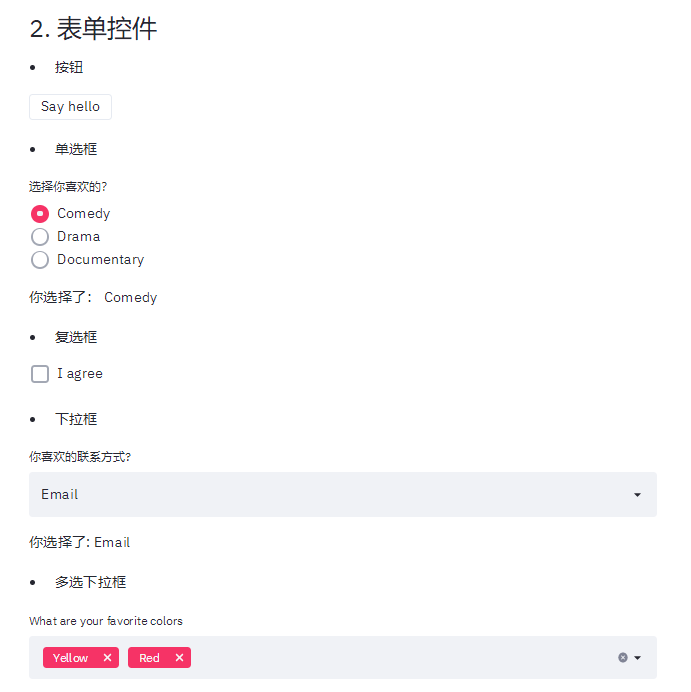

3.3 Form Controls

Streamlit provides a rich set of form controls, such as buttons, radio buttons, checkboxes, dropdowns, text boxes, and file uploads. Usage is summarized as follows:

• The function call defines the displayed control, and the return value indicates whether it was triggered, or returns the result; for example, for a button, st.button('Say hello') defines a button, if pressed, it returns True, otherwise False.

st.markdown('- Button')
if st.button('Say hello'):
    st.write('Why hello there')

st.markdown('- Radio Button')
genre = st.radio(
     "What do you like?",
    ('Comedy', 'Drama', 'Documentary'))

st.write('You chose:', genre)

st.markdown('- Checkbox')
agree = st.checkbox('I agree')
if agree:
    st.write('Thank you for agreeing')

st.markdown('- Dropdown')
option = st.selectbox(
    'What is your preferred contact method?',
   ('Email', 'Home phone', 'Mobile phone'))

st.write('You chose:', option)

st.markdown('- Multi-select Dropdown')
options = st.multiselect(
    'What are your favorite colors',
    ['Green', 'Yellow', 'Red', 'Blue'],
    ['Yellow', 'Red'])

st.write('You chose:', options)

st.markdown('- Slider')
values = st.slider(
    'Select a range of values',
    0.0, 100.0, (25.0, 75.0))
st.write('Values:', values)

st.markdown('- Text Input')
title = st.text_input('Movie title', 'Life of Brian')
st.write('The current movie title is', title)

txt = st.text_area('Text to analyze', '''
    It was the best of times, it was the worst of times, it was
    the age of wisdom, it was the age of foolishness, it was
    the epoch of belief, it was the epoch of incredulity, it
    was the season of Light, it was the season of Darkness, it
    was the spring of hope, it was the winter of despair, (...)
    ''')

st.markdown('- Date and Time')
d = st.date_input(
    "Birthday",
    datetime.date(2019, 7, 6))
st.write('Your birthday is:', d)

t = st.time_input('Alarm', datetime.time(8, 45))
st.write('The alarm is at:', t)

st.markdown('- File Upload')
uploaded_file = st.file_uploader("Choose a CSV file", type="csv")
if uploaded_file is not None:
    data = pd.read_csv(uploaded_file)
    st.write(data)

3.4 Images

Common image libraries are supported, and images can be displayed using st.image.

import cv2
img = cv2.imread('sunrise.jpg')
st.image(img[...,::-1], caption='Sunrise by the mountains',
        use_column_width=True)

3.5 Charts

• Supports displaying charts from pandas DataFrames (line charts, area charts, and bar charts).

st.subheader('4.1 DataFrame Charts')
@st.cache(persist=True)
def get_data():
    df = pd.DataFrame(
    np.random.randn(200, 3),
    columns=['a', 'b', 'c'])
    return df
df = get_data()
# st.table(df)
st.dataframe(df)
st.line_chart(df)
st.area_chart(df)
st.bar_chart(df)

• Also supports displaying charts from matplotlib, which you should be familiar with.

plt.plot(df.a, df.b)
st.pyplot()

3.6 Caching

In Streamlit, data caching is done using the st.cache decorator, which is applied to functions. The benefit of caching is to avoid reloading data every time the page is refreshed.

@st.cache(persist=True)
def get_data():
    df = pd.DataFrame(
    np.random.randn(200, 3),
    columns=['a', 'b', 'c'])
    return df

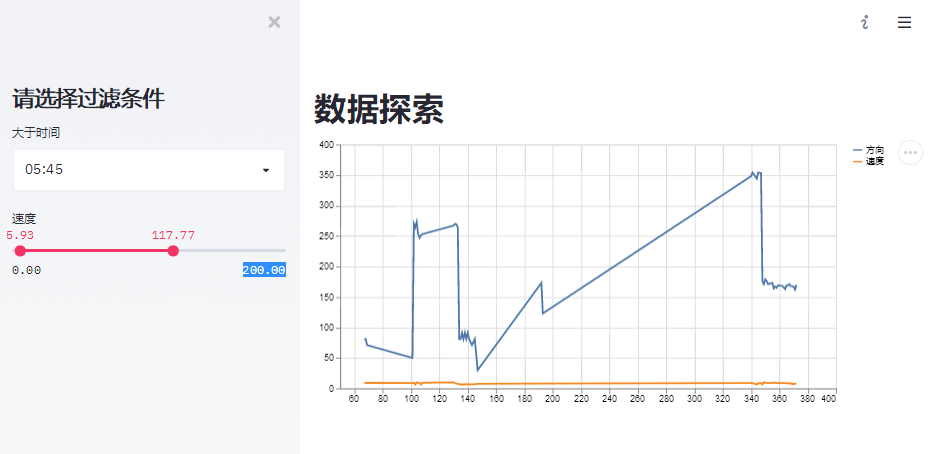

4. Dynamic Data Demo

import streamlit as st
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
# Sidebar
st.sidebar.title('Please select filter conditions')
time = st.sidebar.time_input('Greater than time', datetime.time(1, 0))

values = st.sidebar.slider(
    'Speed',
    0.0, 200.0, (25.0, 75.0))
# Main Column
st.title('Data Exploration')
@st.cache(persist=True)
def get_data():
    file = './7000.csv'
    return pd.read_csv(file, header=0)
data = get_data()
# print(values)
display_data = data[data['time'] > str(time)]
display_data = display_data[(display_data['speed'] > values[0]) & (display_data['speed'] < values[1])]
st.line_chart(display_data[['Direction', 'Speed']])

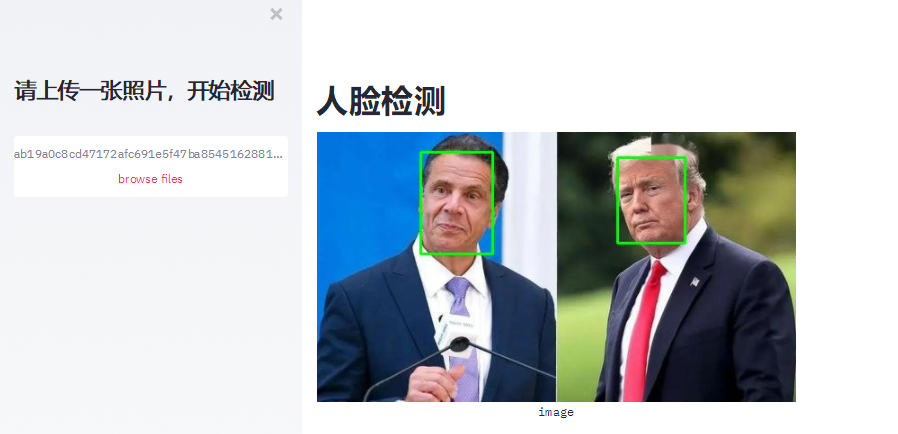

5. Machine Vision Project Demo

This example uses face detection to demonstrate the presentation of a machine vision project.

• Function: Upload an image, detect the face frame.
• The face detection algorithm comes from the MTCNN algorithm in the facenet project https://github.com/davidsandberg/facenet/tree/master/src/align.
• The layout is a left-right layout, with the left side for uploading and the right side for display.

import streamlit as st
import numpy as np
import matplotlib.pyplot as plt
import time
import pandas as pd
import datetime
import cv2
from PIL import Image
import io
from face_detect.mtcnn_tf import MTCNN

# Sidebar
st.sidebar.title('Please upload a photo to start detection')
uploaded_file = st.sidebar.file_uploader("", type="jpg")

# Main Column
st.title('Face Detection')
@st.cache()
def init_model():
    mtcnn = MTCNN()
    return mtcnn

detect = init_model()
if uploaded_file is not None:
    # print(uploaded_file)
    data = np.array(Image.open(io.BytesIO(uploaded_file.read())))
    _, bboxs, _, _ = detect.run(data, detect_multiple_faces=True, margin=0)
    # display bbox and landmarks
    for idx, landmark in enumerate(landmarks):
        bbox = bboxs[idx]
        cv2.rectangle(data, (bbox[1], bbox[0]),
                      (bbox[3], bbox[2]), (0, 2255, 0), 2)
    st.image(data, caption='image', use_column_width=False)

6. Summary

Isn’t it convenient? You can build a web app to showcase your project in no time. I hope this helps you; get started!

• Remember to use caching for data @st.cache().
• Streamlit supports matplotlib.
• Streamlit has beautiful form controls, and the return value of functions is the triggered value.
• Streamlit supports markdown.

The official provides other complex demos (it is recommended to encapsulate business using functions, this article mainly illustrates functionality using a more intuitive approach).

• https://github.com/streamlit/demo-face-gan
• https://github.com/streamlit/demo-self-driving
