So far, we have discussed the architecture of the Agent system, how to organize the system into sub-Agents, and how to build a unified mechanism to standardize communication.
Today, we will turn our attention to the tool layer and one of the most important aspects you need to consider in Agent system design: data retrieval.
Data Retrieval and Agent RAG
It is possible to create Agent systems that do not require data retrieval. This is because some tasks can be accomplished using only the knowledge that your language model has been trained on.
For example, you are likely able to create an effective Agent to write books about historical events (such as the Roman Empire or the American Civil War).
For most Agent systems, providing data access is a key aspect of system design. Therefore, we need to consider several design principles surrounding this functional area.
Retrieval-Augmented Generation (RAG) has become the de facto standard technique for connecting large language models (LLMs) to the data needed to generate their responses. As the name suggests, the general pattern of implementing RAG includes three steps:
Retrieval — retrieving additional context from external knowledge bases. In this context, I use the term “knowledge base” broadly, which can include API calls, SQL queries, vector search queries, or any mechanism used to find relevant context to provide to the LLM.
Augmentation — the user’s input is augmented with relevant context obtained during the retrieval step.
Generation — the LLM uses its pre-trained knowledge along with this augmented context to generate more accurate responses, even about topics and content it has never been trained on.

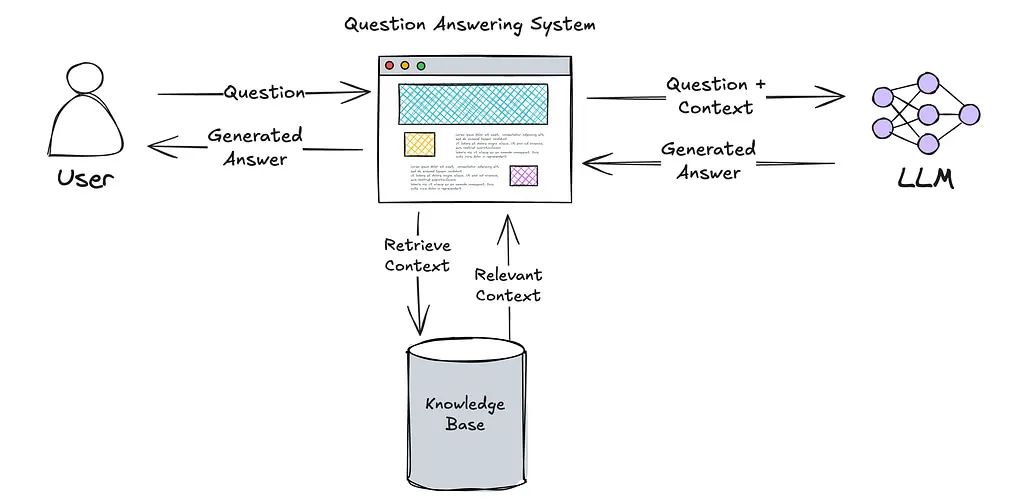

Therefore, using RAG in a question-and-answer system looks roughly as follows:

Agent systems almost always require some implementation of RAG (Retrieval-Augmented Generation) to fulfill their duties. However, when designing Agent systems, it is important to consider how different types of data affect the overall system requirements.
Structured Data and APIs
Companies that have developed mature API projects will find it easier to find paths to value than those that have not. This is because most of the data required to drive Agent systems is the same as the data currently used to drive non-Agent systems.
An insurance company that has already built an API for generating insurance quotes will find it easier to integrate that API into an Agent system than those still in the client/server era.
In fact, Agent systems are expected to disrupt nearly every aspect of the insurance business. From quoting to underwriting, from actuarial science (the odds makers in the insurance business) to claims management, Agent AI is likely to take over these roles entirely in the next 2-3 years. But this will only happen if Agent systems can access the right data and capabilities.

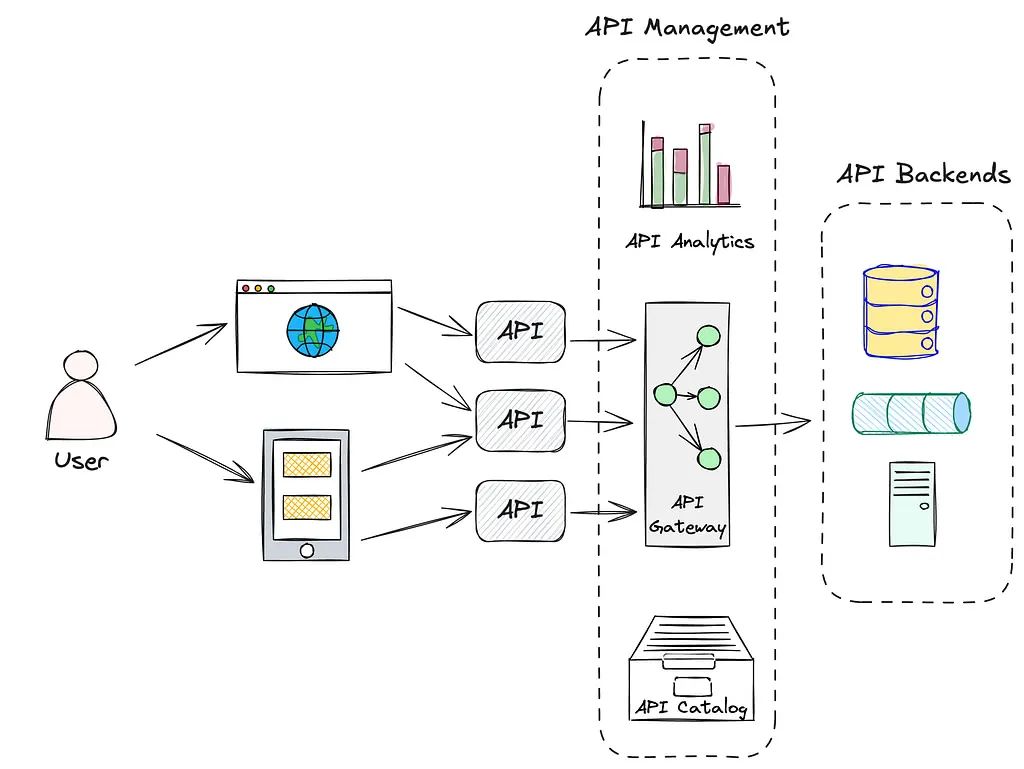

AI-Driven API Management
Many companies equate API management with having an API gateway. However, in the realm of Agent systems, OpenAPI (Swagger) has become a key driver for Agent systems to consume existing APIs. This is because the JSON schema used in OpenAPI can be easily converted into the function definition structure used by many large language model (LLM) providers.

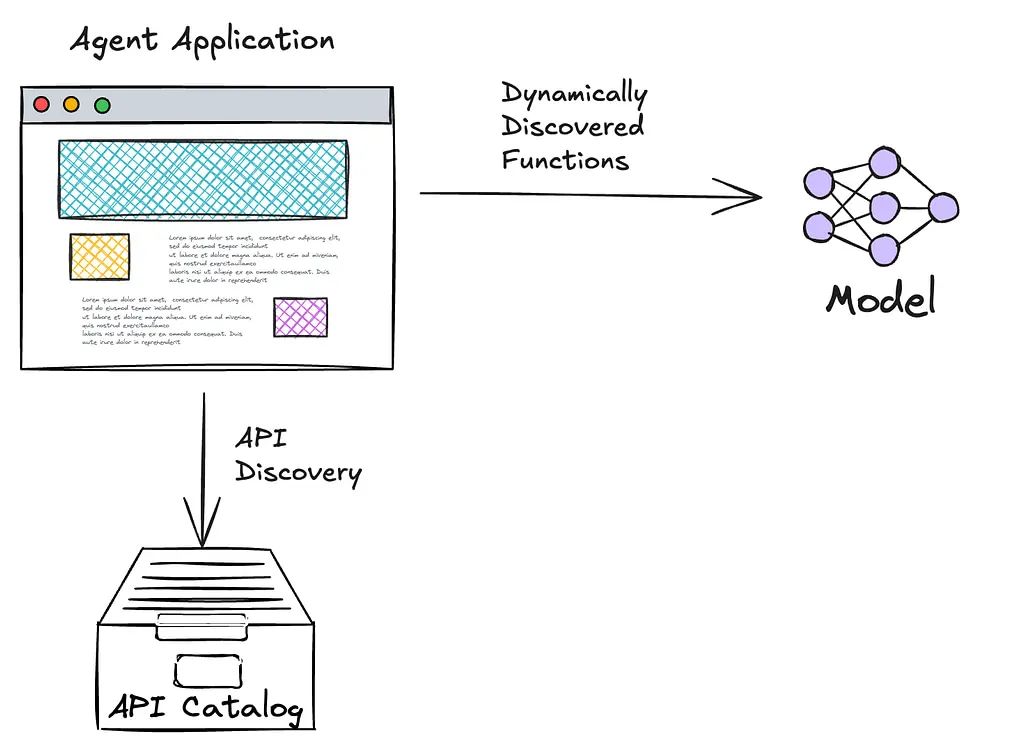

Additionally, the service discovery mechanisms that allow Agent systems to find and discover APIs provide interesting opportunities for Agent systems to create emerging capabilities on their own. Depending on your perspective, this is either an exciting prospect or a frightening one.

With appropriate security measures in place, even API directory searches can be exposed as an available feature to large language models (LLMs), allowing them to search for additional capabilities that can be used to solve current tasks.
Unstructured Data and RAG
While most companies have mature practices for managing structured data such as operations, analytics, and other types, unstructured data management often lags far behind.

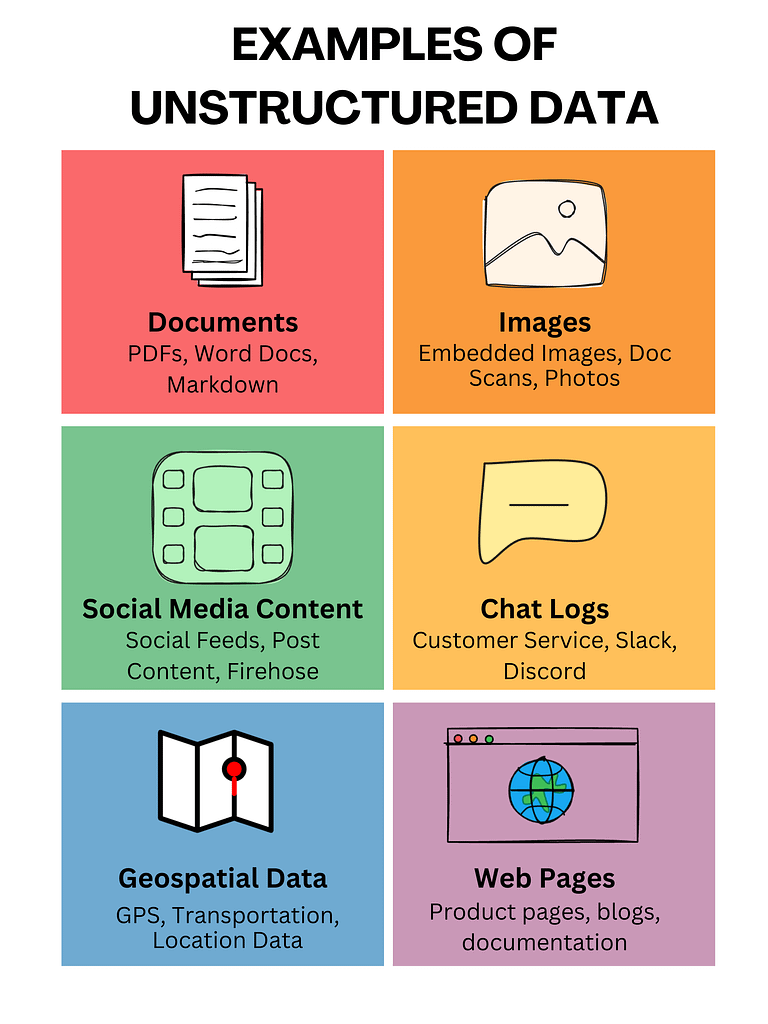

Documents, emails, PDFs, images, customer service records, and other free-form text sources can be extremely valuable for Agent systems — provided that you can retrieve the right information at the right time and in the right format. This is where Retrieval-Augmented Generation (RAG) is particularly powerful.
Why Unstructured Data is Challenging
The range of unstructured data is often broader, and the formats are more diverse (PDF, images, plain text, HTML, etc.). This diversity can overwhelm simple data retrieval methods.

Unlike structured data stored in relational tables, unstructured data does not have a prescribed schema. You cannot simply run SQL queries on a PDF or perform a direct “lookup” in a spreadsheet.
This has prompted the rapid adoption of new technologies to address these challenges.
Vector Databases and Semantic Search
Modern vector databases and semantic search technologies have paved the way for large-scale retrieval of unstructured data. These systems convert text into high-dimensional vector embeddings, allowing for similarity-based lookups. User or agent queries are also converted into vectors and then retrieve the closest vectors from the database (i.e., the text segments most contextually similar).
Large documents are split into smaller “chunks,” each indexed separately. This allows the retriever to only retrieve relevant chunks rather than stuffing the entire document into the prompt.

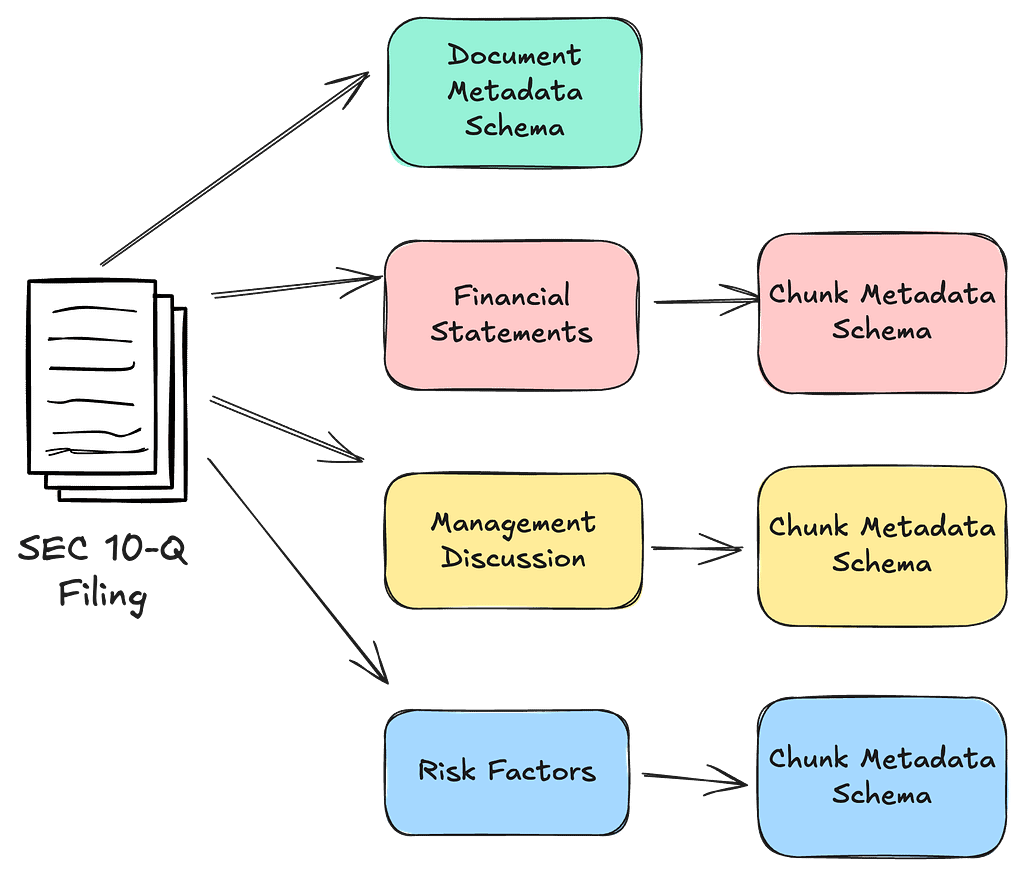

Many vector databases allow you to attach metadata (e.g., author, date, document type) to each chunk. This metadata can guide downstream logic — for example, only retrieving the latest product manuals or knowledge base articles relevant to the user’s question.

In high-traffic scenarios or where data quality is critical (e.g., legal or medical use cases), you can apply additional filters and ranking criteria after semantic search to ensure that only the highest quality or domain-approved content is returned.
RAG Pipelines for Unstructured Data Processing
RAG pipelines act as the connective organization between unstructured data sources and vector databases. They usually consist of several steps, including extraction, chunking, and embedding, which transform chaotic or free-format documents into optimized search indexes to provide relevant context for your large language model (LLM).

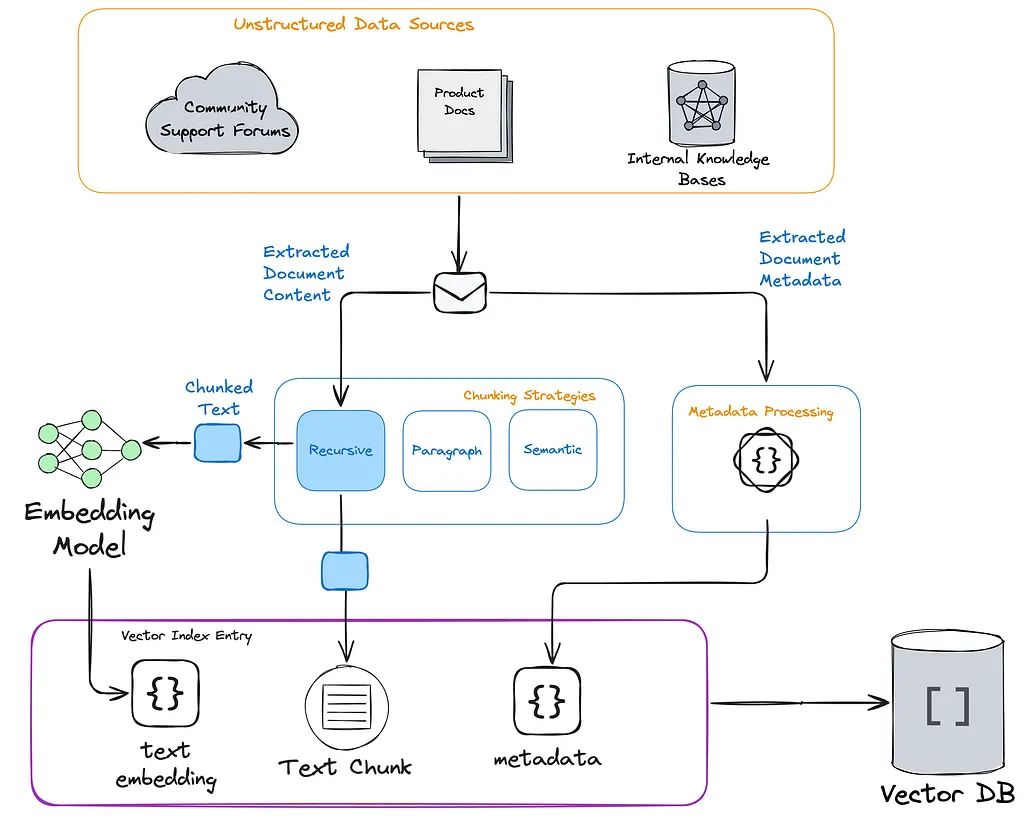

In the image below, you can see how data flows from various unstructured data sources. These may include knowledge bases, documents in file systems, web pages, content in SaaS platforms, and many other sources.
Within the RAG pipeline, unstructured data undergoes a series of transformations. These include extraction, chunking, metadata processing, and embedding (vector) generation, which are then written to a vector index. These pipelines provide the critical functionality of supplying the most relevant information segments when your LLM needs to answer questions or complete tasks.

Because unstructured data is often scattered across different data silos, keeping it synchronized and updated can be a challenge. In large enterprises, some unstructured data sources are constantly changing, meaning RAG pipelines must capture and process these changes with minimal latency.
Outdated embeddings or stale text segments can lead your AI system to provide inaccurate or misleading answers, especially when users seek the latest data about product updates, policy changes, or market trends. Ensuring that your pipelines can handle near-real-time updates — whether through event-driven triggers, periodic crawlers, or streaming data feeds — can significantly enhance the quality and credibility of system outputs.
Optimizing RAG Performance
Developers familiar with data engineering practices for building data pipelines are often unprepared for the non-deterministic nature of vector data.
In traditional data pipelines, we have a good understanding of what the data should look like in both the source and target systems. For example, a set of relational tables in PostgreSQL might need to be transformed into a single flat structure in BigQuery. We can write tests to tell us whether the data in the source system has been correctly transformed into the desired representation in our target system.
When dealing with unstructured data and vector indexing, neither the source nor the target is very clear. Web pages and documents contain
What’s Next?
In the fifth and final part of this series, we will explore horizontal concerns. We will delve into important areas that Agent system designers need to consider, such as security, observability, and tool isolation.
